TE Connectivity AMP Connectors 1-103670-1 — Pin Headers, Sockets & Housings

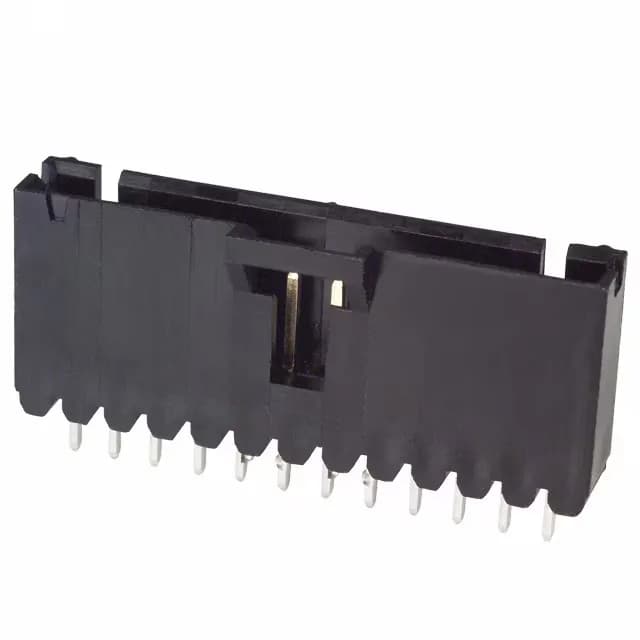

1-103670-1 TE AMPMODU MTE Header, 12 Pos, 2.54mm Pitch

MPN1-103670-1
Active

TE Connectivity AMP Connectors AMPMODU MTE header, 1-103670-1, 12 positions, single row, 0.100" (2.54mm) pitch, shrouded 4-wall, male pin, through-hole, press-fit/solder termination, gold mating finish, latch holder, UL94 V-0.

$1.4578Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-103670-1 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1-103670-1 key specifications
ParameterValue
SeriesAMPMODU MTE
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Voltage rating267V
Current rating3A
Operating temperature-65°C~105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.535\" (13.60mm)
Insulation materialThermoplastic

All specifications

1-103670-1 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationPress-Fit, Solder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions12
Contact finish - postTin-Lead
Contact length - post0.130\" (3.30mm)
Contact finish - matingGold
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

12-Position, 0.100" Pitch Shrouded Header

The 1-103670-1 is a 12-position, single-row, shrouded header from the AMPMODU MTE series by TE Connectivity.

Board Fit and Termination

Through-hole mounting with both press-fit and solder termination options — the press-fit interface suits backplane or solderless assembly where rework-friendly connections are needed. A keying slot prevents mis-mating with non-complementary receptacles, reducing assembly errors in multi-connector harnesses.

The base product number is 103670; the -1 suffix indicates the specific plating and packaging variant.

Frequently asked questions

Does 1-103670-1 have a keying slot?

Yes, it includes a keying slot to prevent mis-mating with non-complementary receptacles.
