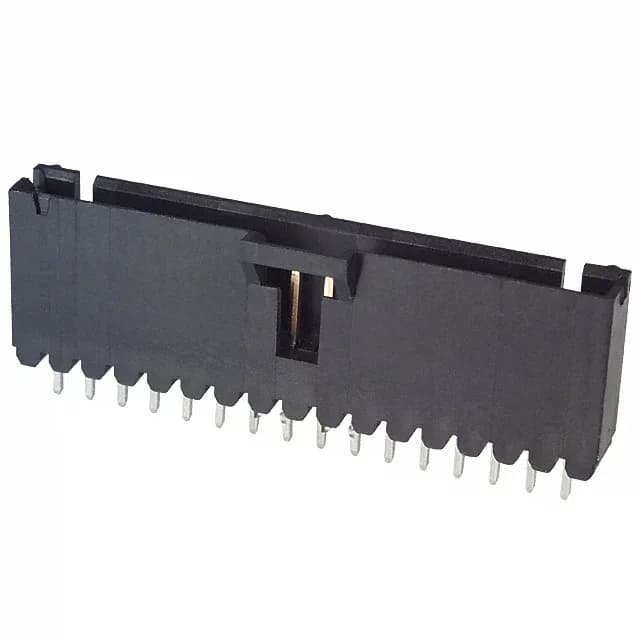

TE Connectivity AMPMODU MTE header, 1-103670-5, 16 positions, single row, 0.100" (2.54mm) pitch, shrouded - 4 wall, through hole, press-fit/solder termination, gold mating finish, latch holder, black thermoplastic housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 267V |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The through-hole termination with press-fit and solder options means the header can be wave-soldered or pressed into plated holes for a solderless backplane assembly. The 0.130" (3.30mm) post length accommodates standard PCB thicknesses.
RoHS non-compliant — the tin-lead post finish (100.0µin) and the contact finish may require an exemption for certain markets. Check your BOM for regulatory restrictions before committing.
No, 1-103670-5 is RoHS non-compliant due to tin-lead post finish. Verify your BOM's regulatory requirements before ordering.
