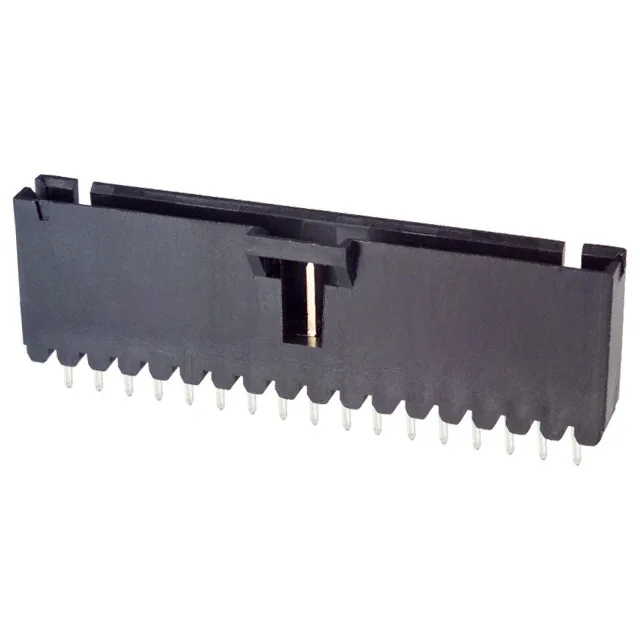

1-103735-6 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

1-103735-6 TE Connectivity AMPMODU MTE Header, 17 Pos

MPN1-103735-6
Active

TE Connectivity AMPMODU MTE, 17-position single-row shrouded header, 0.100" (2.54mm) pitch, through-hole solder termination, gold-plated mating contacts, 3A per contact, UL94 V-0 black thermoplastic housing.

$5.5014Ref. price · indicative, final on quote
1-103735-6 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

1-103735-6 Technical Specifications
ParameterValue
SeriesAMPMODU MTE
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Current rating3A
Operating temperature-65°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.535\" (13.60mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions17
Contact finish - postTin-Lead
Contact length - post0.130\" (3.30mm)
Overall contact length0.545\" (13.84mm)
Contact finish - matingGold
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

The 1-103735-6: The post tails are tin-lead plated at 100µinch (2.54µm) for reliable solder wetting. The UL94 V-0 thermoplastic housing meets flame-retardancy requirements for enclosed equipment.

The single-row layout with 17 positions loaded all means every pin is present — no skipped positions to check against the BOM.

Mating and Latching

The header uses a latch holder fastening system for positive retention with the mating receptacle. The keying slot prevents mis-mating, and the full 4-wall shroud guides the plug into alignment — important in tight enclosures or blind-mate scenarios.

Frequently asked questions

Where can I buy 1-103735-6 and how do I get a price?

The 1-103735-6 is available through independent distribution.

How many positions does 1-103735-6 have?

It has 17 positions in a single row, all loaded.

What is the pitch and mounting type of 1-103735-6?

The pitch is 0.100" (2.54mm), and the mounting type is through-hole solder.
