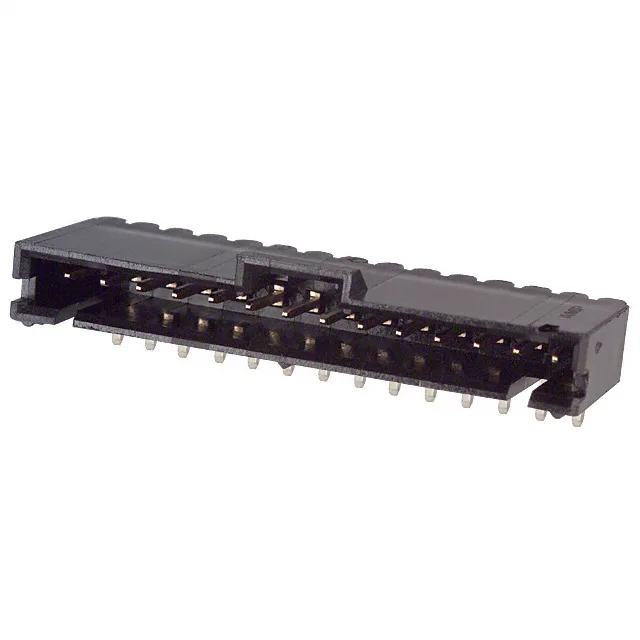

AMPMODU MTE 14-circuit header
The 1-103906-3 is the 14-circuit member of TE's AMPMODU MTE shrouded header line, configured as a single-row board-to-board or cable interconnect. Rated 3 A per contact with gold-plated mating surfaces (30.0 µin), the header suits signal-level duty in automotive, medical, and telecom assemblies.
2.54 mm pitch, shrouded 4-wall
The 2.54 mm pitch and shrouded 4-wall design protect the mating pins and accept a latch holder for secure retention — the keying slot prevents mis-mating with unkeyed receptacles. The through-hole right-angle orientation places the 0.130" (3.30 mm) post perpendicular to the board edge, suiting right-angle cable exits in space-constrained enclosures.
