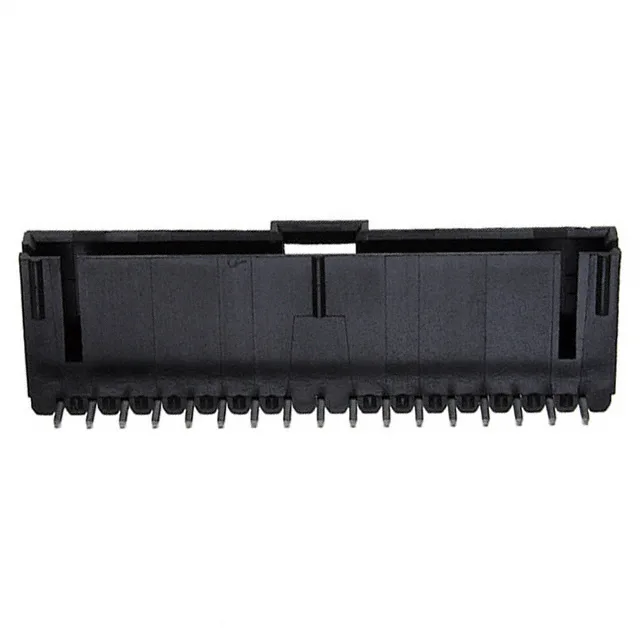

TE Connectivity AMP Connectors AMPMODU MTE header, order code 1-103906-6, 17 positions, single row, 0.100" (2.54 mm) pitch, 3 A, gold-plated mating contacts, through-hole right-angle, solder termination.
TE 1-103906-6 AMPMODU MTE Header, 17 Pos, 2.54 mm, Obsolete
MPN1-103906-6
Obsolete
TE Connectivity AMP Connectors AMPMODU MTE header, order code 1-103906-6, 17 positions, single row, 0.100" (2.54 mm) pitch, 3 A, gold-plated mating contacts, through-hole right-angle, solder termination.
$3.1800Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Gender | Male Pin |
| Mounting type | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.200\" (5.08mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 17 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the closest pin-compatible alternative to 1-103906-6 in this Pin Headers, Sockets & Housings family?
No pin-compatible alternative is documented in the AMPMODU MTE series. The 1-103906-6 is a 17-position single-row header; a board redesign may be required for a different position count or series.
