TE Connectivity AMP Connectors 1-103908-5 — Pin Headers

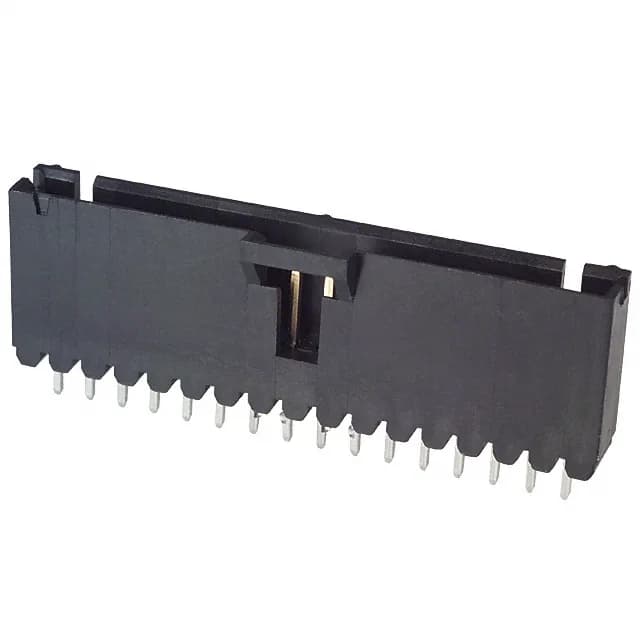

1-103908-5 TE Connectivity AMPMODU MTE Header, 16 Pos

MPN1-103908-5
Active

TE Connectivity AMPMODU MTE, 1-103908-5, Board to Board or Cable, Header, 16 Positions, 0.100" (2.54 mm) Pitch, Through Hole, Press-Fit or Solder, Gold Mating Finish

$3.7800Ref. price · indicative, final on quote
RoHSRoHS non-compliant
SeriesAMPMODU MTE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-103908-5 key specifications
ParameterValue
SeriesAMPMODU MTE
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Current rating3A
Operating temperature-65°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.535\" (13.60mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

1-103908-5 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationPress-Fit, Solder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions16
Contact finish - postTin-Lead
Contact length - post0.130\" (3.30mm)
Overall contact length0.545\" (13.84mm)
Contact finish - matingGold
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Single-Row 16-Position Header for Board or Cable Interconnect

A keying slot prevents mismating, and the latch holder provides a positive lock against vibration in industrial or automotive environments.

The square male pins are made of brass, with a tin-lead post finish (100.0 µin) for solderability.

Press-Fit or Solder Termination for Through-Hole Mounting

Press-fit allows a solderless assembly for backplane or high-reliability applications, while the solder option remains available for conventional wave or hand-soldering processes. These dimensions determine the board thickness and through-hole depth required for a reliable fit.

The 1-103908-5 is RoHS non-compliant due to the tin-lead post finish.

Frequently asked questions

Is 1-103908-5 RoHS compliant?

No, the 1-103908-5 is RoHS non-compliant because the contact finish on the post is tin-lead. Check your regional compliance requirements before ordering.
