TE Connectivity AMP Connectors 1-103958-1 — Panel-Mount & In-Line Circular

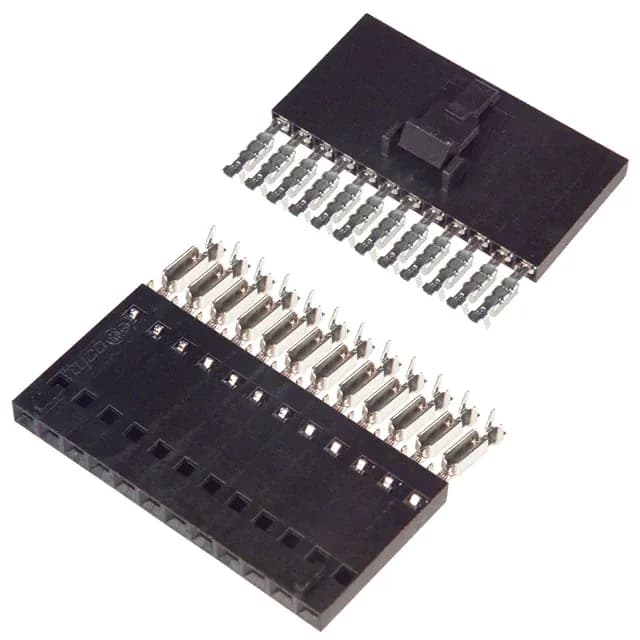

TE AMPMODU MTE 1-103958-1, 12P IDC Receptacle, 0.100" Pitch

MPN1-103958-1
Active

TE Connectivity AMPMODU MTE IDC receptacle, 12 positions, 0.100" (2.54mm) pitch, 1 row, female socket contacts, gold 30.0µin, free-hanging, latch lock, 22-26 AWG.

$3.9850Ref. price · indicative, final on quote
RoHSRoHS non-compliant
SeriesAMPMODU MTE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1-103958-1 specifications
ParameterValue
SeriesAMPMODU MTE
Wire typeDiscrete or Ribbon Cable
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Wire gauge22-26 AWG
Cable terminationIDC
ColorBlack
Pitch0.100\" (2.54mm)
PackageTube
FeaturesClosed End
Contact finishGold
Rows1
Positions12
Contact finish thickness30.0µin (0.76µm)

Product details

IDC Receptacle for Discrete or Ribbon Cable

The TE Connectivity AMPMODU MTE 1-103958-1 is a 12-position, single-row IDC receptacle designed for terminating discrete or ribbon cable without a crimp tool.

Gold Plating Thickness and Mating Cycle Life

If the application is a one-time install with no reconnection requirement, the 1-103957-1 is a cost-effective alternative.

It accepts 22-26 AWG discrete wire or ribbon cable. No stripping or crimping is required, but the wire gauge is fixed by the IDC slot geometry.

Frequently asked questions

What is the equivalent or replacement for 1-103958-1?

It is not an official replacement but a cost-alternative sibling in the same AMPMODU MTE series.
