TE Connectivity AMP Connectors 1-104071-1 — Pin Headers, Sockets & Housings

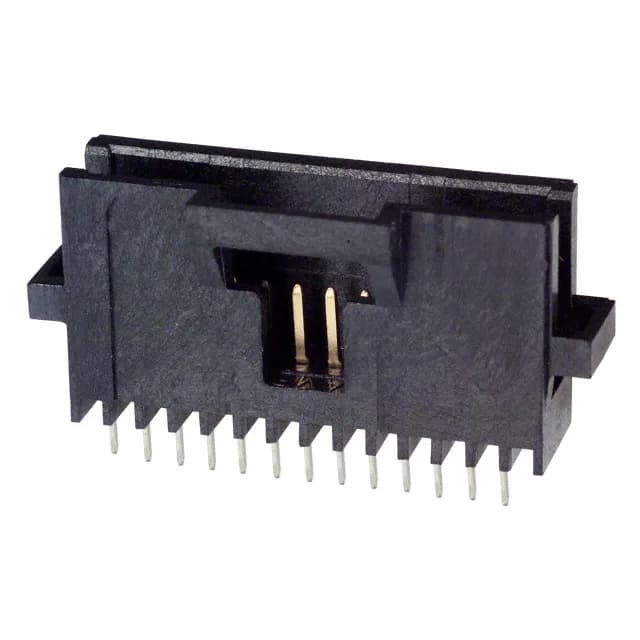

1-104071-1 TE Connectivity AMPMODU System 50 Header, 12 Pos

MPN1-104071-1
Active

TE Connectivity AMPMODU System 50, shrouded header, 12 positions, 0.050" (1.27 mm) pitch, through-hole, gold mating finish, latch holder, UL94 V-0, active production.

$2.2258Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-104071-1 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-104071-1 key specifications
ParameterValue
SeriesAMPMODU System 50
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Voltage rating30VAC
Operating temperature-65°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.390\" (9.91mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

1-104071-1 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTube
ShroudingShrouded - 2 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeCircular
Rows1
Pitch0.050\" (1.27mm)
Positions12
Contact finish - postTin-Lead
Contact length - post0.100\" (2.54mm)
Contact finish - matingGold
Contact length - mating0.125\" (3.18mm)
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

1-104071-1 is a 12-position, single-row, shrouded male pin header from the AMPMODU System 50 series. The tin-lead post finish is compatible with standard through-hole solder processes.

Rated 30 VAC, the voltage ceiling reflects the fine-pitch signal duty of the System 50 series — this is a signal interconnect, not a power connector.

The base product number is 104071, which covers the single-row, 0.050" pitch shrouded header family. This specific variant is the 12-position, gold-plated version in tube packaging.

Frequently asked questions

What is the pitch of 1-104071-1?

The mating pitch is 0.050" (1.27 mm).

What series does 1-104071-1 belong to?

It is part of the AMPMODU System 50 series from TE Connectivity.

What are the typical applications for this header?

Rated for automotive, general purpose, medical, and telecommunications equipment — covers most commercial and industrial use cases.

What is the mounting type of 1-104071-1?

Through-hole mounting with solder termination.
