Press-fit termination, dual-row breakaway
The 1-104350-0: Termination is press-fit with solder — the through-hole post measures 0.120" (3.05mm) and carries tin-lead finish. Gold mating contacts rated 3A at 30VAC. UL94 V-0 thermoplastic insulator.
TE 1-104350-0 Header, 20 Pos, 2.54mm, Last Buy
MPN1-104350-0
Last Buy

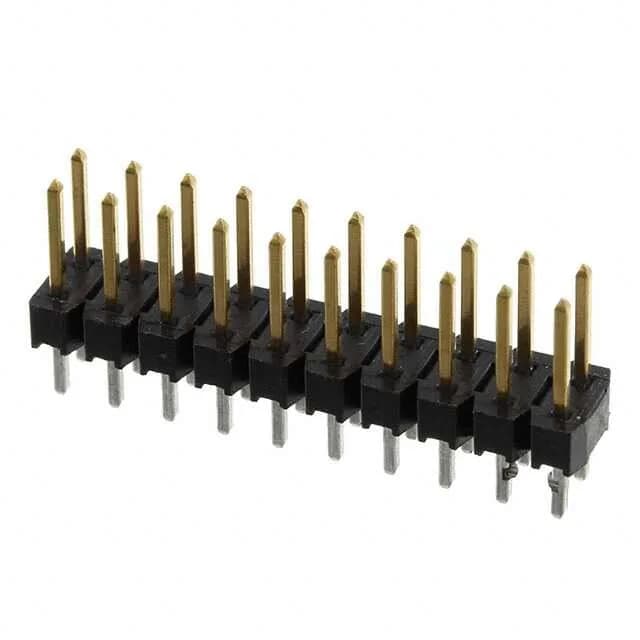

TE Connectivity AMP Connectors AMPMODU Mod II header, breakaway, order code 1-104350-0, 20 positions, dual row, 0.100" (2.54mm) pitch, 3A, 30VAC, gold mating contacts, through-hole, press-fit and solder termination.
$3.9900Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Voltage rating | 30VAC |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.090\" (2.29mm) |
| Insulation material | Thermoplastic |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Press-Fit, Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.440\" (11.18mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Where can I buy the 1-104350-0 and get a price?
The 1-104350-0 is available through independent surplus channels. Submit an RFQ for current stock and pricing.
