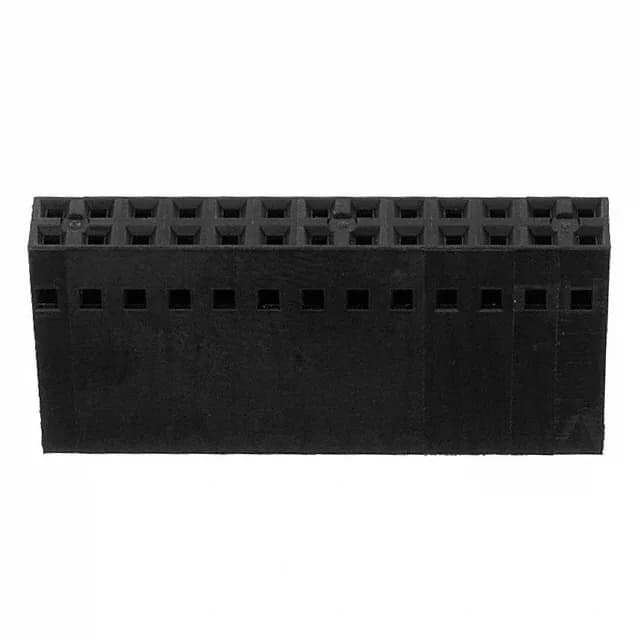

TE Connectivity AMPMODU receptacle housing, 26 circuits, 2 rows, 0.100" (2.54mm) pitch, free-hanging (in-line) mount, crimp termination, black thermoplastic, -65°C to 125°C, RoHS compliant.
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Operating temperature | -65°C ~ 125°C |
| Color | Black |
| Insulation material | Thermoplastic |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Row spacing | 0.100\" (2.54mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 26 |
This housing ships empty — the crimp sockets are ordered separately. The note "Contacts Not Included" is not a defect; it is standard for AMPMODU housings that accept field-installed terminals. You will need to source the matching female crimp contacts (TE part numbers vary by wire gauge and plating).
The 1-104482-1 accepts female socket contacts with crimp termination, but the contacts are not included with the housing. You must order the matching AMPMODU crimp terminals separately based on your wire gauge and plating preference (e.g., tin or gold).
The pitch is 0.100" (2.54mm) on both the position spacing and the row spacing, matching the standard AMPMODU header footprint.
