TE Connectivity AMP Connectors AMPMODU 50/50 Grid header, order code 1-104656-0, 100 positions, dual row, 0.050" (1.27mm) pitch, 0.5A per contact, gold-plated mating contacts, surface-mount, solder termination, shrouded - 4 wall.

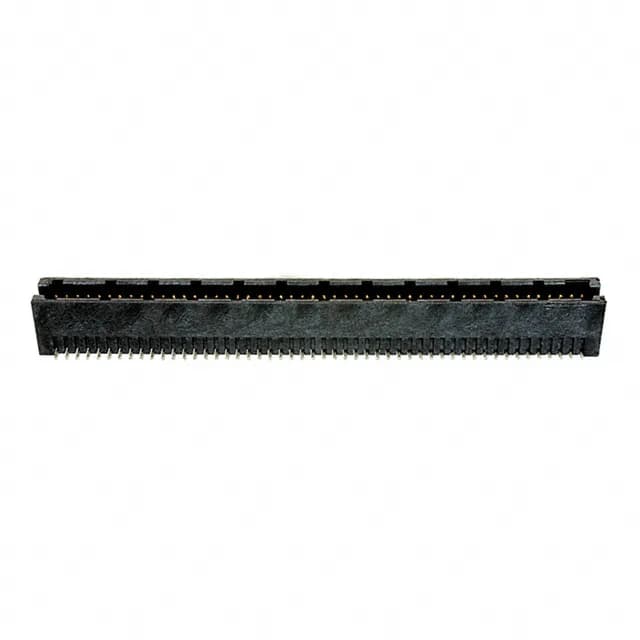

1-104656-0 TE AMPMODU 50/50 Grid Header 100 Pos 1.27mm
MPN1-104656-0
Active
TE Connectivity AMP Connectors AMPMODU 50/50 Grid header, order code 1-104656-0, 100 positions, dual row, 0.050" (1.27mm) pitch, 0.5A per contact, gold-plated mating contacts, surface-mount, solder termination, shrouded - 4 wall.
$10.4386Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU 50/50 Grid |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 0.5A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.298\" (7.57mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Mated stacking heights | 8.13mm |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Military, Telecommunications |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 100 |
| Row spacing - mating | 0.050\" (1.27mm) |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Gold |
| Contact length - mating | 0.120\" (3.05mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is 1-104656-0's listed style and series?
The style is Board to Board and the series is AMPMODU 50/50 Grid from TE Connectivity AMP Connectors.
