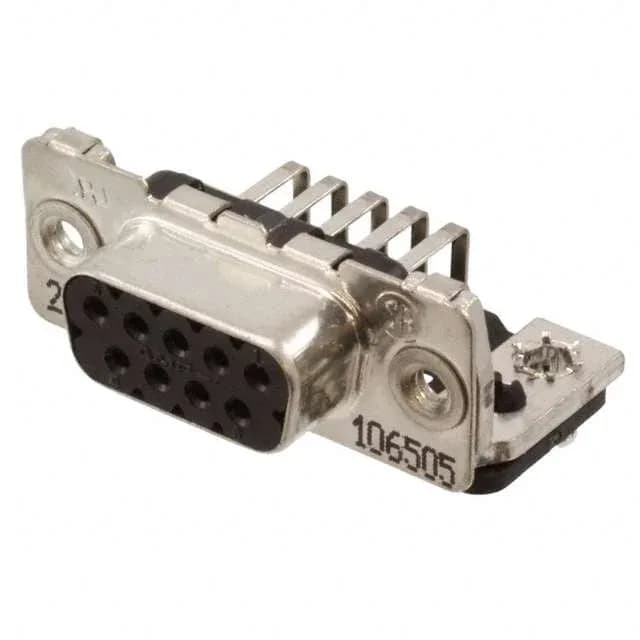

TE Connectivity AMPLIMITE HD-20 D-Sub receptacle, 9 positions, 2 rows, right-angle solder termination, 30.0µin gold contacts, rated 6A, 125V, panel mount with board locks.
| Parameter | Value |
|---|---|
| Series | AMPLIMITE HD-20 |
| Type | Signal |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | Receptacle, Female Sockets |
| Voltage rating | 125V |
| Current rating | 6A |
| Shell size, connector layout | 1 (DE, E) |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Dielectric material | Polyester, Glass Filled |
| Shell material, finish | Steel, Tin Plated |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Board Lock |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (4-40) |
| Rows | 2 |
| Backset spacing | 0.406\" (10.30mm) |
| Positions | 9 |
| Contact finish thickness | 30.0µin (0.76µm) |
This receptacle mounts through the PCB with right-angle solder tails and secures to the panel via the 4-40 threaded flanges (housing/shell flange feature). The backset spacing of 0.406" (10.30 mm) sets the distance from the PCB edge to the mounting flange face — a dimension to check against your enclosure cutout and PCB edge clearance.
No official direct replacement is listed. The closest functional equivalents are the 3-1393480-8 and 8-1437045-3, both active AMPLIMITE HD-20 receptacles with the same 9-position, right-angle, gold-contact configuration — the difference is packaging (Box vs Bulk).
Yes — it uses the standard DE (E) shell size layout with 4-40 threaded flanges. The panel cutout dimensions follow the D-Subminiature DE footprint; the backset spacing of 0.406" (10.30 mm) sets the flange-to-PCB edge distance.
Yes, the 1-106505-2 is ROHS3 compliant.
