TE Connectivity AMP Connectors 1-111446-6 — Panel-Mount & In-Line Circular

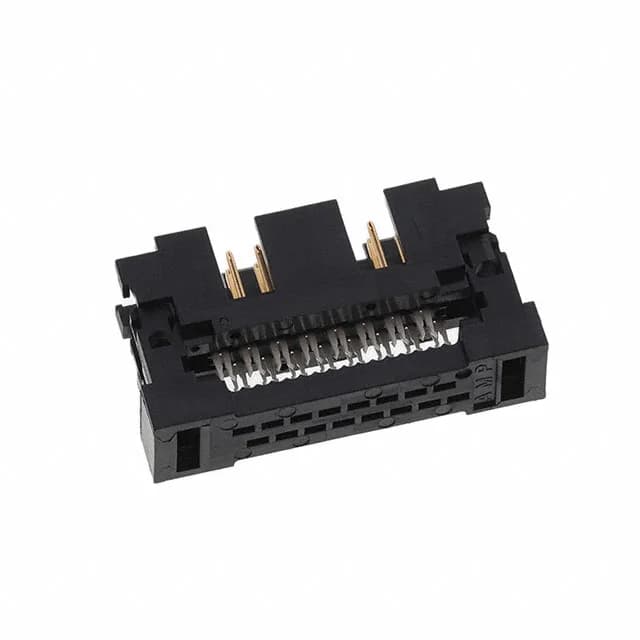

TE AMP-Latch 1-111446-6, 16-Pin IDC Plug, 0.100" Pitch

MPN1-111446-6
Active

TE Connectivity AMP-Latch series, Plug, IDC, 16 positions, 2 rows, 0.100" (2.54mm) pitch, 26-28 AWG ribbon cable, 30.0µin gold contact finish, Black, Tray.

$9.7900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-111446-6 specifications
ParameterValue
SeriesAMP-Latch
Wire typeRibbon Cable
TypeMale Pin
MountingFree Hanging (In-Line)
Connector typePlug
Wire gauge26-28 AWG
Cable terminationIDC
ColorBlack
Pitch0.100\" (2.54mm)
PackageTray
FeaturesFeed Through
Row spacing0.100\" (2.54mm)
Contact finishGold
Rows2
Positions16
Contact finish thickness30.0µin (0.76µm)

Product details

AMP-Latch 16-Position IDC Plug for Ribbon Cable

The TE Connectivity AMP-Latch 1-111446-6 is a 16-position IDC plug designed for mass-termination to 26-28 AWG ribbon cable.

Termination is IDC — the ribbon cable is pressed onto the insulation-displacement slots in one operation, no stripping or soldering. The 26-28 AWG range covers standard 0.050" center ribbon cable. The feed-through feature allows the cable to pass through the connector body, simplifying daisy-chain routing in a harness.

This plug mates with standard AMP-Latch 0.100" pitch shrouded headers (e.g., the 1-226733-4 receptacle, which uses a detent lock for retention). The black housing is keyed by the polarization ribs on the header to prevent mis-mating.

Frequently asked questions

What is the wire gauge range and contact finish for 1-111446-6?

The 1-111446-6 accepts 26-28 AWG ribbon cable and uses IDC termination. The male pin contacts have a 30.0 µ" gold finish.

What is the pitch of 1-111446-6?

The pitch is 0.100" (2.54mm) between contacts, with the same 0.100" row spacing, matching standard 0.050" center ribbon cable.

Where can I buy 1-111446-6 online?

This part is sourced to order against your BOM quantity. Availability and pricing are confirmed at quote time.
