TE Connectivity AMP Connectors 1-111492-6 — Panel-Mount & In-Line Circular

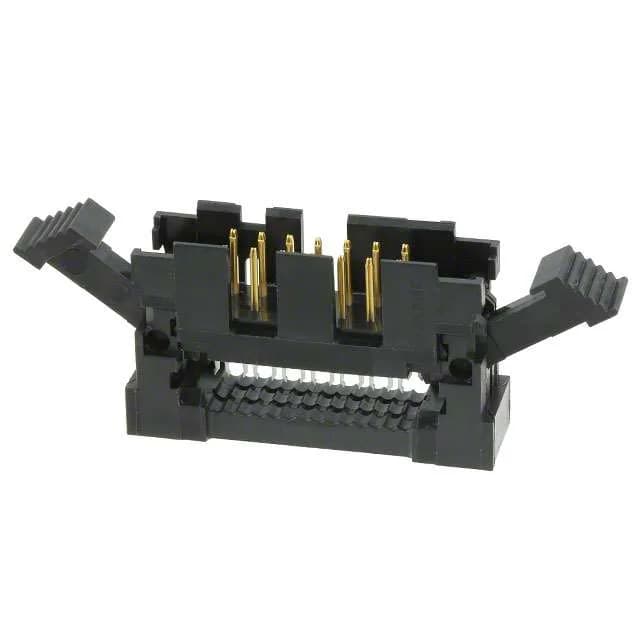

TE 1-111492-6 AMP-Latch 14-Pin IDC Plug, 0.100" Pitch

MPN1-111492-6
Active

TE Connectivity AMP-Latch IDC plug, 14 positions, 2 rows, 0.100" (2.54mm) pitch, gold 30.0µin contacts, 26-28 AWG ribbon cable, latch lock/eject hooks, black, tray.

$12.3100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-111492-6 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-111492-6 specifications
ParameterValue
SeriesAMP-Latch
Wire typeRibbon Cable
TypeMale Pin
MountingFree Hanging (In-Line)
Connector typePlug
Fastening typeLatch Lock/Eject Hooks
Wire gauge26-28 AWG
Cable terminationIDC
ColorBlack
Pitch0.100\" (2.54mm)
PackageTray
FeaturesFeed Through, Polarizing Key
Row spacing0.100\" (2.54mm)
Contact finishGold
Rows2
Positions14
Contact finish thickness30.0µin (0.76µm)

Product details

14-Position IDC Plug for Ribbon Cable Harnesses

The TE Connectivity 1-111492-6 is a 14-position IDC plug in the AMP-Latch series, designed to terminate 26-28 AWG ribbon cable. The latch lock/eject hooks on each end provide positive retention and a tool-free release when unmating from the header.

This plug mates with any standard AMP-Latch 0.100" x 0.100" shrouded header of the same 14-position count. The IDC termination presses the ribbon cable conductors into the insulation-displacement slots — no wire stripping required. The feed-through feature and polarizing key in the housing prevent misalignment during termination and mating.

Frequently asked questions

Where can I buy 1-111492-6?

1-111492-6 is sourced to order against an RFQ through independent distribution. Submit a request for current pricing and availability — confirmed at quote time.

What is the mating connector for 1-111492-6?

It mates with any standard AMP-Latch 0.100" x 0.100" shrouded header of the same 14-position count. The latch lock/eject hooks engage the header's locking slots.

What wire gauge is 1-111492-6 for?

It is designed for 26-28 AWG ribbon cable, terminated via IDC.
