TE Connectivity AMP Connectors 1-111626-9 — Panel-Mount & In-Line Circular

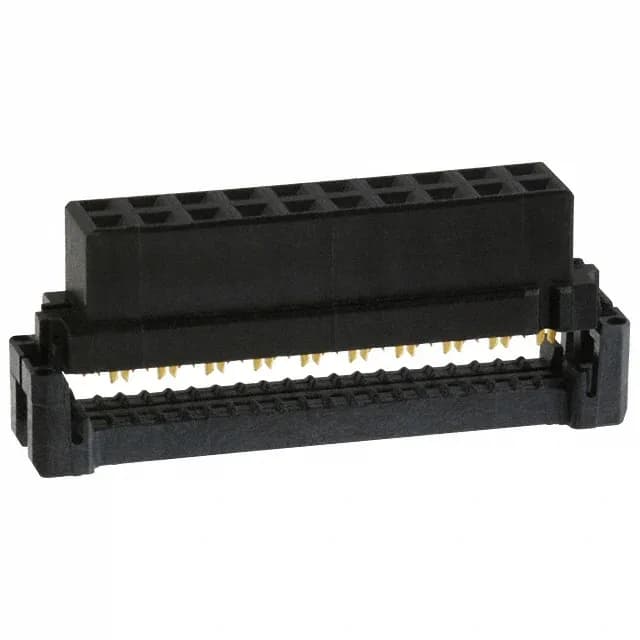

TE AMP-Latch 1-111626-9, 20 Pos IDC Receptacle, 0.079" Pitch

MPN1-111626-9
Active

TE AMP-Latch receptacle, 20 circuits, 2 rows, 0.079" (2.00mm) pitch, IDC termination, 28 AWG ribbon cable, gold 30.0µin contacts, free-hanging, black housing.

$7.0600Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-111626-9 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMP-Latch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-111626-9 specifications
ParameterValue
SeriesAMP-Latch
Wire typeRibbon Cable
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Wire gauge28 AWG
Cable terminationIDC
ColorBlack
Pitch0.079\" (2.00mm)
PackageBulk
FeaturesFeed Through
Row spacing0.079\" (2.00mm)
Contact finishGold
Rows2
Positions20
Contact finish thickness30.0µin (0.76µm)

Product details

20-Position IDC Receptacle for 28 AWG Ribbon Cable

The TE AMP-Latch 1-111626-9 is a 20-position, 2-row receptacle that terminates 28 AWG ribbon cable via insulation displacement contacts (IDC). The black housing is free-hanging — no board lock, no panel mount — it floats in the cable run, which is exactly what you want when the harness needs to route around a chassis edge without a hard anchor point.

The IDC termination accepts 28 AWG ribbon cable. The feed-through feature allows the cable to pass through the housing.

Frequently asked questions

What is the pitch of 1-111626-9?

The pitch is 0.079" (2.00mm), matching the standard AMP-Latch header grid for ribbon cable interconnects.

What wire gauge does 1-111626-9 support?

It terminates 28 AWG ribbon cable via IDC contacts.

Is 1-111626-9 RoHS compliant?

Yes, it is ROHS3 compliant.
