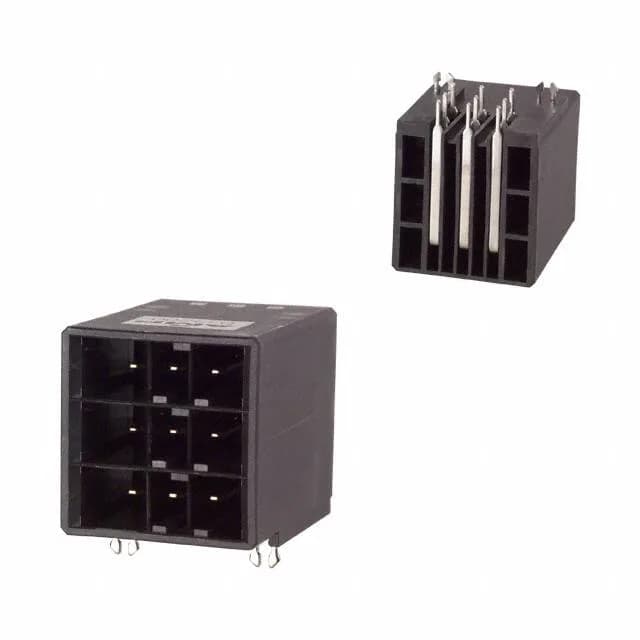

TE Connectivity AMP Connectors Dynamic D-3200 header, order code 1-1123624-5, 9 positions, 3 rows, 0.200" (5.08 mm) pitch, 600 V, tin-plated mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3200 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 600V |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.968\" (24.59mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 3 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 9 |
| Row spacing - mating | 0.300\" (7.62mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
The 1-1123624-5 is the 9-circuit member of the TE Dynamic D-3200 header series, arranged in 3 rows at a 0.200" (5.08 mm) mating pitch.
The 4-wall shrouded housing and detent lock prevent mis-mating and hold the connector pair together under vibration. The board lock keeps the header seated during the solder process and resists shear from cable strain.
The style is Board to Board or Cable.
