TE Connectivity AMP Connectors, Economy Power series, Board to Cable/Wire header, 5 positions, single row, 0.156" (3.96mm) pitch, 7.5A per circuit at 250VAC, tin-plated brass contacts, shrouded 1-wall friction lock, through-hole solder termination, PBT housing UL94 V-0, -25°C to 105°C, bulk pack.
| Parameter | Value |
|---|---|
| Series | Economy Power |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | 7.5A |
| Operating temperature | -25°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.118\" (3.00mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Lighting |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.146\" (3.70mm) |
| Overall contact length | 0.567\" (14.40mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.303\" (7.70mm) |

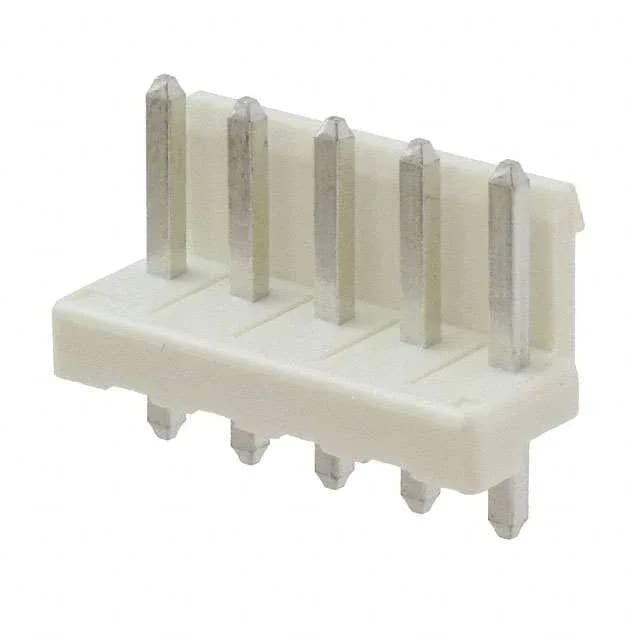

The 1-1123723-5: It carries 7.5A per circuit at 250VAC, making it a fit for general-purpose, industrial, and lighting power distribution.
The 0.118" (3.00mm) insulation height above the board keeps the profile low.
The 1-1123723-5 mates with a 5-position Economy Power receptacle housing that accepts the matching crimp terminals. The friction lock on the header engages with the corresponding lock on the receptacle. Confirm the receptacle part number against your wire harness assembly.
