TE Connectivity AMP Connectors 1-1123723-7 — Pin Headers

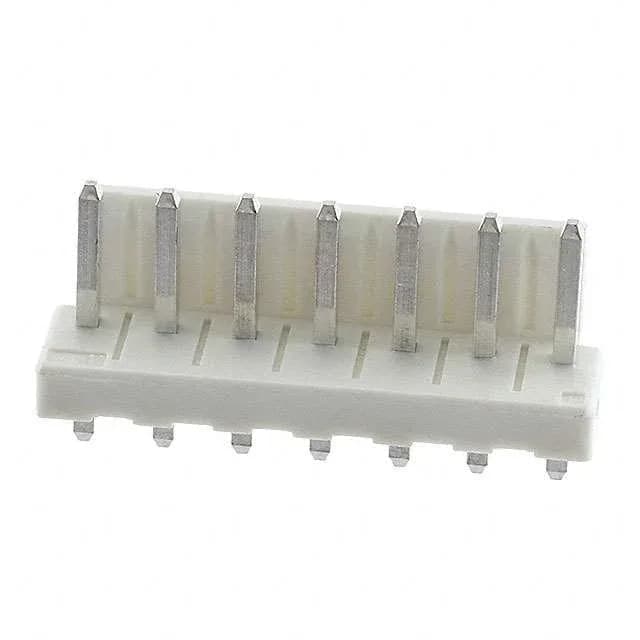

1-1123723-7 TE Connectivity Header 7 Pos 3.96mm Pitch

MPN1-1123723-7
Active

TE Connectivity AMP Connectors Economy Power header, 1-1123723-7, 7 positions, 0.156" (3.96mm) pitch, single-row, through-hole, shrouded 1-wall, friction lock, tin-plated contacts, 7.5 A, 250 VAC, UL94 V-0.

$0.5000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-1123723-7 datasheet (PDF)
RoHSRoHS Compliant
SeriesEconomy Power
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1-1123723-7 key specifications
ParameterValue
SeriesEconomy Power
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Voltage rating250VAC
Current rating7.5A
Operating temperature-25°C~105°C
Contact materialBrass
Insulation colorNatural
Insulation height0.118\" (3.00mm)
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled

All specifications

1-1123723-7 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 1 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial, Lighting
Contact shapeSquare
Rows1
Pitch0.156\" (3.96mm)
Positions7
Contact finish - postTin
Contact length - post0.146\" (3.70mm)
Overall contact length0.567\" (14.40mm)
Contact finish - matingTin
Contact length - mating0.303\" (7.70mm)

Product details

0.156" Pitch, 7 Positions — Board Layout Fit

The 1-1123723-7: At 7 positions loaded, the total width across the pins is just under 1.1 inches — a compact fit for power distribution on a control board or lighting driver.

7.5 A at 250 VAC — Power Delivery Ceiling

The tin-plated mating surface keeps contact resistance low at first mate but limits the connector to roughly 25–50 mating cycles before fretting becomes a concern.

Peer Comparison: 1376366-8 vs 1-1123723-7

The 1-1123723-7 carries a wider 0.156" (3.96 mm) pitch and higher current rating (7.5 A vs 5 A), making it the better choice for power distribution where board space allows the wider footprint.

Frequently asked questions

Where can I buy 1-1123723-7?

Submit an RFQ with your target quantity and we will confirm availability and current pricing — no stock-holding claim is made on this listing.

What is the pitch of 1-1123723-7?

The mating pitch is 0.156" (3.96 mm), single row, 7 positions loaded.

Does 1-1123723-7 have a friction lock?

Yes, the header includes a friction lock that engages with the matching receptacle housing to resist vibration-induced disconnection.
