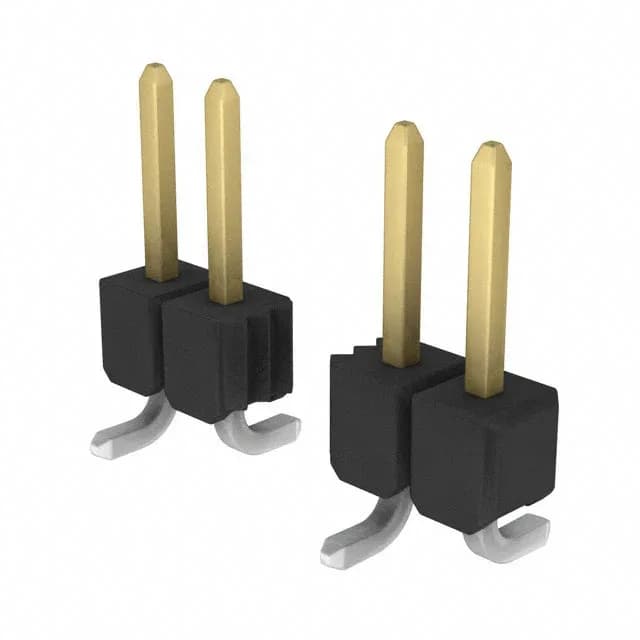

TE Connectivity AMPMODU Mod II unshrouded breakaway header, 10 positions, 0.100" (2.54 mm) pitch, surface-mount solder termination, gold-palladium flash on mating contacts, black PCT housing, active production.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.110\" (2.79mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Pick and Place |
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.228\" (5.80mm) |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | Flash |
The 1-1241150-0: Termination is surface-mount solder, and the header includes a pick-and-place feature for automated assembly.
The square male pins are brass with tin-plated posts for reliable solder-joint wetting.
Surface-mount (SMT) solder termination. The header is designed for reflow soldering and includes a pick-and-place feature for automated assembly.
