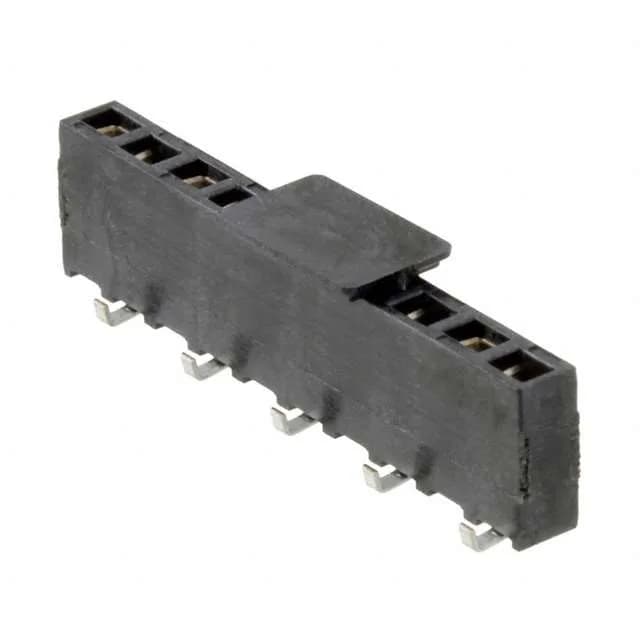

TE Connectivity AMP Connectors AMPMODU HV-100 series, 1-1241152-0, 10-position single-row SMT receptacle, 0.100" (2.54 mm) pitch, gold mating finish, push-pull fastening, black LCP housing
| Parameter | Value |
|---|---|
| Series | AMPMODU HV-100 |
| Type | Female Socket |
| Mounting | Surface Mount |
| Connector type | Receptacle, Bottom or Top Entry |
| Fastening type | Push-Pull |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.244\" (6.20mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Style | Board to Board |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Pick and Place |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
The 1-1241152-0 is a 10-position, single-row, surface-mount receptacle from the AMPMODU HV-100 series.
The push-pull fastening and black LCP housing provide basic retention. The pick-and-place feature indicates the part is designed for automated assembly, with a flat top surface for vacuum pickup.
For a 10-position match, stick with the 1-1241152-0.
