TE Connectivity AMP Connectors 1-1318114-3

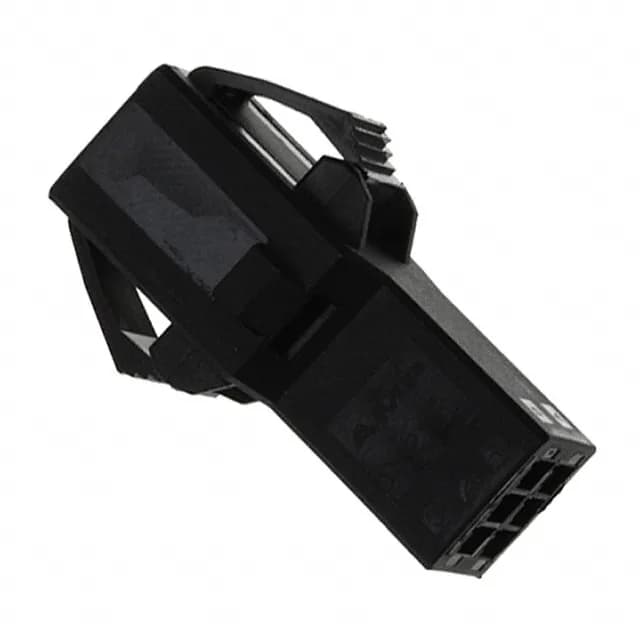

TE Dynamic D-2100 1-1318114-3 Plug Housing, 6 Pos, 2.50mm

MPN 1-1318114-3
Active

TE Connectivity Dynamic D-2100 series, plug housing, 6 positions, 2.50mm pitch, 2 rows, panel mount snap-in, crimp termination, polarizing key, black thermoplastic housing, -55°C to 105°C.

$1.2500 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSRoHS Compliant
IncotermsDAP / DDP Available
SeriesDynamic D-2100
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-1318114-3 specifications
ParameterValue
SeriesDynamic D-2100
TypeMale Pin
MountingPanel Mount, Snap-In
Connector typePlug
Operating temperature-55°C ~ 105°C
ColorBlack
Insulation materialThermoplastic, Polyester, Glass Filled
NoteContacts Not Included
Pitch0.098\" (2.50mm)
PackageBulk
FeaturesPolarizing Key
Rows2
Contact terminationCrimp
Positions6

Product details

Panel-Mount Plug Housing for Dynamic D-2100

Housing Only — Order Crimp Terminals Separately

The buyer must order the matching male pin crimp terminals separately — typically the TE 1-929939-1 or equivalent for the 2.50mm pitch Dynamic D-2100 system. The housing accepts the crimp terminals, which are then inserted into the cavity and retained by the integral latch. Plan the terminal order alongside the housing to avoid a partial BOM.

Snap-In Panel Mount with Polarizing Key

The housing mounts via panel mount, snap-in, meaning it locks into a rectangular panel cutout without additional hardware — useful for enclosure walls or bulkheads where the connector needs to be fixed while the mating half is free-hanging. The polarizing key ensures the plug can only mate one way with the corresponding header, a practical safeguard in assemblies with multiple connectors of the same pitch.

MPN
1-1318114-3
