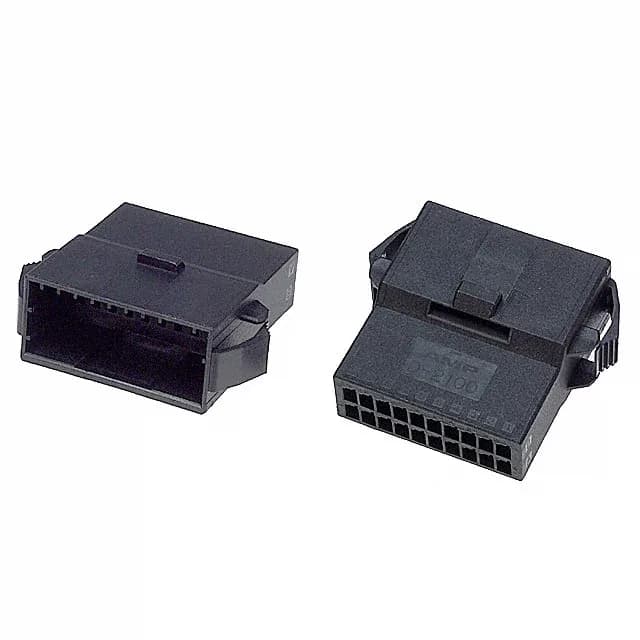

Dynamic D-2100 Plug Housing — 20 Circuits, Panel-Mount Snap-In
The dual-row layout at 2.50 mm pitch provides a compact footprint for 20 circuits while maintaining adequate creepage for the series' typical 250 VAC/VDC rating (per D-2100 application specs). The housing accepts male pin crimp terminals — contacts are ordered separately. A polarizing key on the shroud prevents mis-mating with non-keyed receptacles, a practical safeguard in multi-connector harness assemblies.
Panel Mount Snap-In Installation
The housing mounts directly into a panel cutout with snap-in retention — no mounting screws or brackets required. This speeds field installation and reduces hardware count in enclosures.
Crimp Termination and Contact Ordering
This is a housing-only component — the crimp terminals (male pin contacts) must be ordered separately. The 2.50 mm pitch accepts TE's Dynamic D-2100 crimp contacts, typically 20-24 AWG wire range. The dual-row arrangement means the 20 positions fill two rows of 10, so the harness builder needs to account for both rows when routing wires. The polarizing key ensures the plug mates only with a correspondingly keyed receptacle, reducing assembly errors in panels with multiple D-2100 connectors.
For BOM planning, the 20-position dual-row housing is a direct fit for any Dynamic D-2100 application requiring that circuit count; confirm the mating receptacle and crimp terminal part numbers separately.
