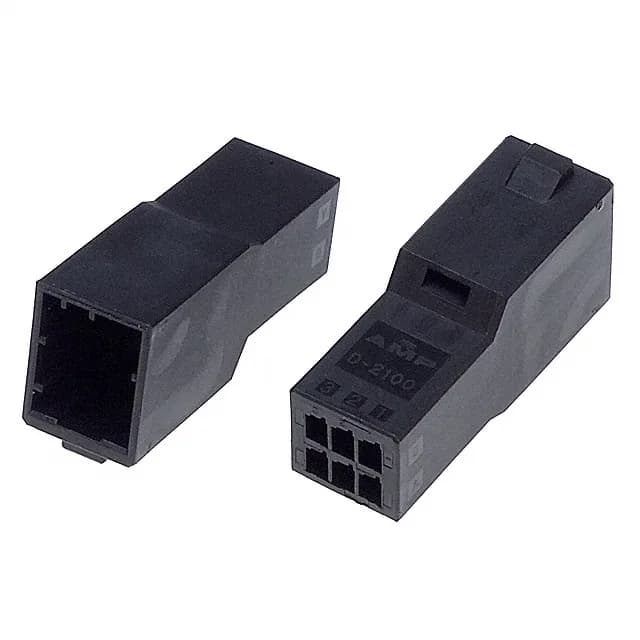

TE Connectivity AMP Connectors Dynamic D-2100 series, 1-1318115-3, plug housing, 6 circuits, 2-row, 0.098" (2.50mm) pitch, free-hanging, locking ramp, black thermoplastic, -55°C to 105°C, contacts not included
| Parameter | Value |
|---|---|
| Series | Dynamic D-2100 |
| Type | Male Pin |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Fastening type | Locking Ramp |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.098\" (2.50mm) |
| Package | Bulk |
| Features | Polarizing Key |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 6 |
The 1-1318115-3: The male pin contacts are crimp-terminated, then inserted into the housing.
Mates with Dynamic D-2100 series headers (2.50 mm pitch, 6 circuits, 2 rows). The polarizing key prevents misalignment during mating. In field service, the ramp releases by pressing down — no tools needed for disconnect.
No. The spec note explicitly states 'Contacts Not Included'.
