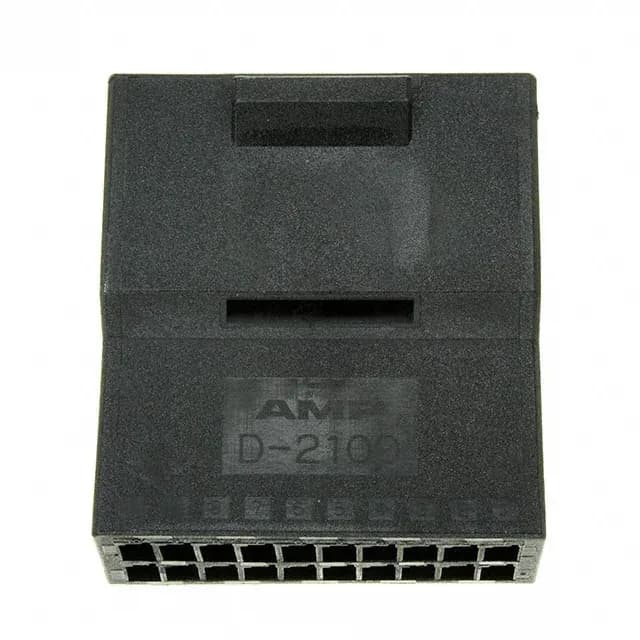

TE Connectivity Dynamic D-2100 series plug housing, 1-1318115-9, 20 positions, 2 rows, 0.098" (2.50mm) pitch, free-hanging in-line, male pin contacts, locking ramp, polarizing key, black thermoplastic housing, crimp termination, contacts not included.
| Parameter | Value |
|---|---|
| Series | Dynamic D-2100 |
| Type | Male Pin |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Fastening type | Locking Ramp |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.098\" (2.50mm) |
| Package | Bulk |
| Features | Polarizing Key |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 20 |
It mates with a Dynamic D-2100 receptacle housing that carries female socket contacts. The locking ramp engages audibly on full mate, and the polarizing key ensures correct orientation. For a 20-circuit harness, order 20 male crimp terminals and the matching female receptacle housing with 20 female sockets.
The 1-1318115-9 housing accepts male pin crimp terminals from the Dynamic D-2100 series. Contacts are not included with the housing — order them separately. The exact TE terminal part number depends on wire gauge; consult the Dynamic D-2100 application drawing for the correct terminal.
