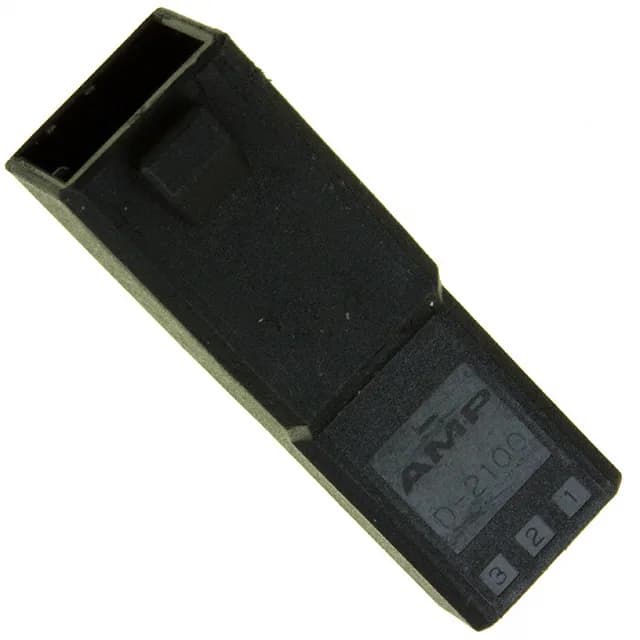

TE Connectivity Dynamic D-2100 series plug housing, 1-1318117-3, 3 positions, 2.50mm pitch, single row, free-hanging, crimp termination, locking ramp, polarizing key, black thermoplastic, RoHS.
| Parameter | Value |
|---|---|
| Series | Dynamic D-2100 |
| Type | Male Pin |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Fastening type | Locking Ramp |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.098\" (2.50mm) |
| Package | Bulk |
| Features | Polarizing Key |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 3 |
The housing is free-hanging (in-line), mates with the matching Dynamic D-2100 receptacle header, and is held in place by a locking ramp that resists vibration-induced separation. A polarizing key prevents incorrect insertion during assembly.
The locking ramp and polarizing key are built into the housing, so no additional hardware is needed for mate retention or orientation.
Submit an RFQ for current pricing and availability — confirmed at quote time.
Yes, the 1-1318117-3 plug housing mates with the matching Dynamic D-2100 receptacle header. Both use the same 2.50mm pitch and locking ramp interface.
The housing accepts Dynamic D-2100 series male pin crimp contacts. The contacts are not included and must be ordered separately.
