TE Connectivity AMP Connectors 1-1318123-1 — Pin Headers

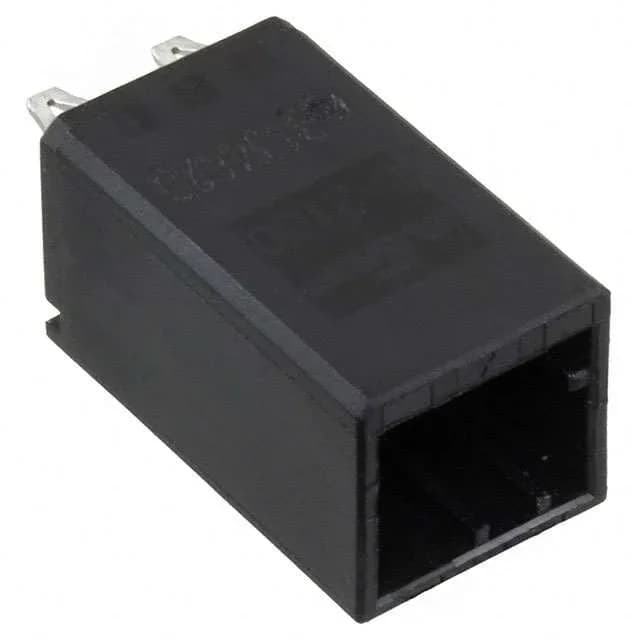

1-1318123-1 TE Dynamic D-2100 Header 3 Pos 2.5mm Gold

MPN1-1318123-1
Active

TE Connectivity AMP Connectors Dynamic D-2100 series, 1-1318123-1, Board to Board or Cable header, 3 circuits, 2.50mm pitch, vertical through-hole, gold-plated mating contacts, shrouded with detent lock, board lock feature, UL94 V-0.

$2.0100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-1318123-1 datasheet (PDF)
RoHSROHS3 Compliant
SeriesDynamic D-2100
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-1318123-1 key specifications
ParameterValue
SeriesDynamic D-2100
TypeTab
MountingThrough Hole
Connector typeHeader
Fastening typeDetent Lock
Voltage rating250VAC
Current rating5A
Operating temperature-55°C~105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.700\" (17.78mm)
Insulation materialThermoplastic, Polyester, Glass Filled

All specifications

1-1318123-1 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageTube
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial
Contact shapeRectangular
Rows1
Pitch0.098\" (2.50mm)
Positions3
Contact finish - postTin
Contact length - post0.134\" (3.40mm)
Contact finish - matingGold
Contact finish thickness - mating15.0µin (0.38µm)

Product details

The 1-1318123-1: This is a 3-position, single-row vertical header from TE's Dynamic D-2100 series.

Shrouded, Locked, Board-Locked — Vibration-Ready Mount

The 4-wall shrouding protects the gold tabs from stubbing during blind mating, and the detent lock holds the mating receptacle in place under vibration.

That covers most indoor industrial control panels, general-purpose machinery, and test equipment.

Active lifecycle status, ROHS3 compliant. Sourced through independent distribution against your BOM quantity — availability and current pricing confirmed at quote time.
