N Type RF Jack for RG-8A and RG-213
The TE Connectivity Greenpar 1-1337406-0 is an N Type jack with a female socket interface, built for 50 Ohm systems and rated to 11 GHz. The silver-plated brass body and silver-plated phosphor bronze centre contact handle the RF path, while the PTFE dielectric keeps insertion loss stable across the band. The threaded coupling gives a positive mechanical lock — no wiggle at the interface after torquing, which matters when you're up a tower or sealing an outdoor enclosure.
Cable Termination and Field Assembly

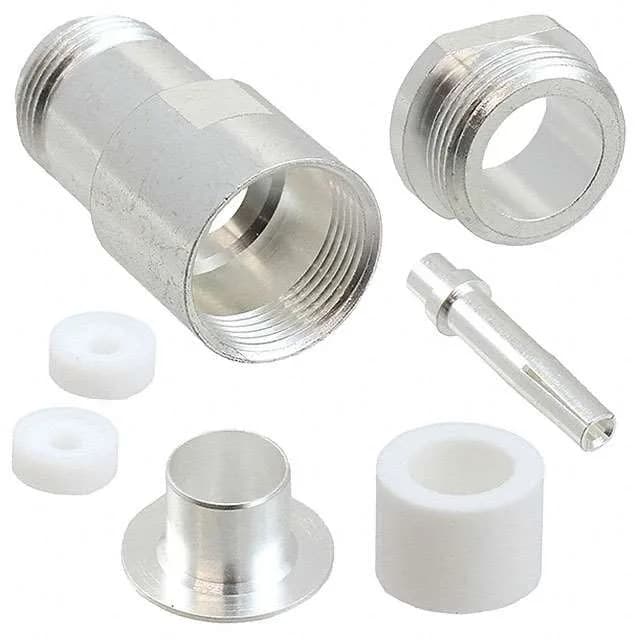

This jack terminates to RG-8A cable — the clamp-style shield termination and solder centre contact are the standard field-install method for these cables. The kit includes the connector body, clamp, contact, gasket, two insulators, and a sleeve, so you have everything except the cable and a soldering iron. The 1000 V rating means it's comfortable on high-power RF amplifiers or transmitter outputs where the voltage swing is real, not just a datasheet number.
