TE Connectivity Greenpar N-type plug, male pin, 50 Ohm, 11 GHz, 0.3 dB insertion loss, 1000 V, 500 mating cycles, solder contact, crimp shield, for RG-9B/214 cable.
| Parameter | Value |
|---|---|
| Series | Greenpar |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pin |
| Fastening type | Threaded |
| Voltage rating | 1000 V |
| Frequency - max | 11 GHz |
| Cable group | RG-9B, 214 |
| Operating temperature | -65°C ~ 165°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Brass |
| Parameter | Value |
|---|---|
| Package | Bulk |

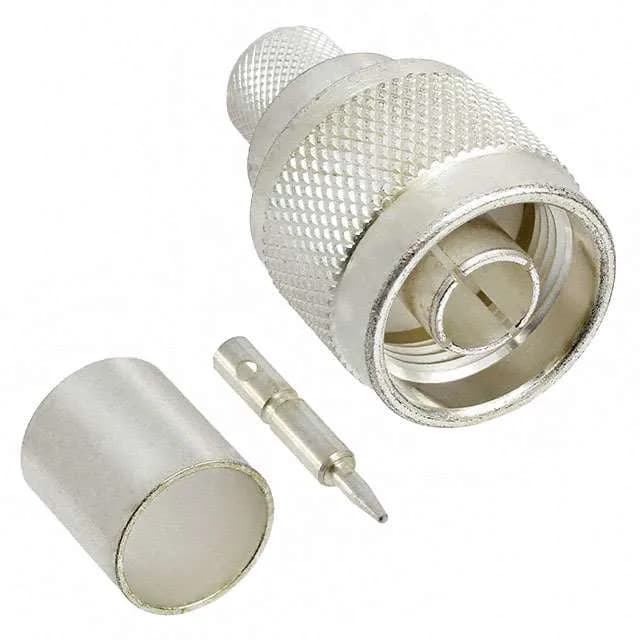

| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Impedance | 50 Ohms |
| Body finish | Silver |
| Mating cycles | 500 |
| Insertion loss | 0.3dB |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Solder |
| Center contact plating | Silver |
The 1-1337415-0: The threaded coupling gives a vibration-resistant mate that holds 500 mating cycles, and the 0.3 dB insertion loss across the band means the signal sees little attenuation through the joint.
This plug is specced for RG-9B and 214 cable groups — the dielectric diameter and impedance match the 50 Ohm design. The centre contact is solder-terminated, and the shield is crimped through the ferrule.
This part is active and sourced per RFQ.
