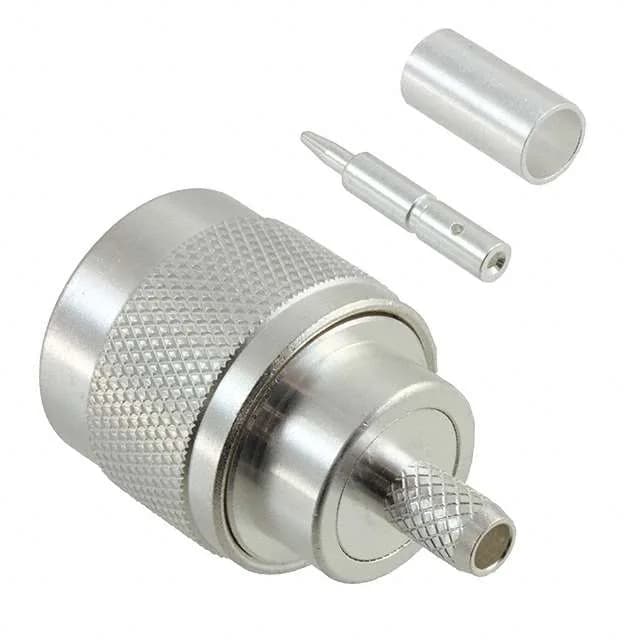

It delivers 50 Ohm characteristic impedance and is rated to 11 GHz maximum frequency, with an insertion loss of 0.3 dB across the band — making it suitable for RF signal paths in test equipment, antenna feeds, and industrial wireless systems where signal integrity at higher frequencies is critical. The connector is supplied as a kit: 3 pieces including the connector body, one centre contact, and one ferrule. The centre contact is brass with silver plating, and the body is brass with a silver finish.
The centre contact is terminated by soldering, while the shield is terminated by crimping. The connector is compatible with cable groups RG-58C, 141A, and Belden 9907 — common 50 Ohm coax cables used in RF installations. The threaded fastening type provides a vibration-resistant connection once mated with a standard N-type jack.
Durability and Voltage Rating
Rated for 500 mating cycles, this plug is suited for field-service and test-bench applications where repeated connect/disconnect is expected. The voltage rating of 1000 V gives headroom for high-power RF amplifiers and broadcast transmitters.
