TE Connectivity AMP Connectors 1-1337417-0

TE Greenpar N-Type Jack 1-1337417-0, 50 Ohm, 11 GHz

MPN 1-1337417-0
Active

TE Connectivity Greenpar N-type jack, female socket, 50 Ohm, panel mount bulkhead with rear-side nut, solder cup contact, solder tag shield, silver body, rated 11 GHz, 1000 V, -65 to 165°C.

$9.7200 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-1337417-0 key specifications
ParameterValue
SeriesGreenpar
MountingPanel Mount
Connector typeJack, Female Socket
Fastening typeThreaded
Voltage rating1000 V
Frequency - max11 GHz
Mounting featureBulkhead - Rear Side Nut
Operating temperature-65°C ~ 165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass

All specifications

1-1337417-0 additional specifications
ParameterValue
PackageBulk

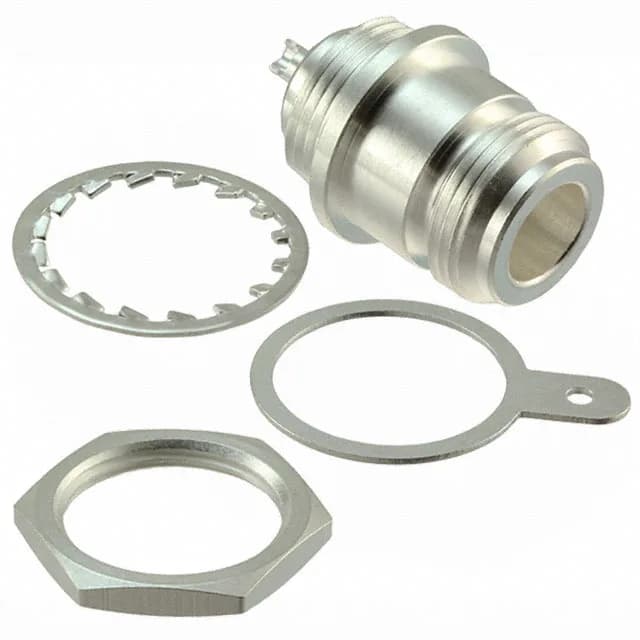

Includes4 pcs - 1 Connector, 1 Lockwasher, 1 Nut, 1 Solder Tag
Impedance50 Ohms
Body finishSilver
Mating cycles500
Number of ports1
Shield terminationSolder Tag
Contact terminationSolder Cup
Center contact platingSilver

Product details

N-Type Bulkhead Jack for 11 GHz RF Paths

The 1-1337417-0: Silver-plated brass body and centre contact, with a PTFE dielectric keeping the loss stable across the band. The 1000 V rating is high for an N-type; this jack can handle the peak envelope power in pulsed RF or high-power transmitter feeds without breaking down the air gap. Panel-mount bulkhead with a rear-side nut — the standard chassis feed-through arrangement for N-type enclosures.

Termination and Mounting — Solder Cup and Solder Tag

Contact termination is a solder cup — you tin the stripped centre conductor, insert into the cup, and flow solder. The shield termination is a solder tag that wraps around the cable braid or foil. This is a manual-build process, not a crimp operation; the harness builder needs a soldering iron with enough thermal mass to wet the cup without melting the PTFE. The bulkhead mount uses a rear-side nut that tightens against the panel from inside the enclosure — the jack body stays fixed while the nut is torqued. Lockwasher included in the kit to prevent the nut backing off under vibration.

That covers outdoor telecom cabinets in direct sun, unpressurised aircraft bays, and industrial enclosures near heat sources. The PTFE dielectric and silver-plated brass contacts hold their electrical properties across the full range — no dielectric creep or contact oxidation that would shift the impedance or increase insertion loss at the high end.
