TE Connectivity Greenpar BNC jack, female socket, 50 Ohm, 4 GHz, 500 V, panel mount bulkhead, solder contact, crimp shield, nickel body, gold center contact.
| Parameter | Value |
|---|---|
| Series | Greenpar |
| Mounting | Panel Mount |
| Connector type | Jack, Female Socket |
| Fastening type | Bayonet Lock |
| Voltage rating | 500 V |
| Frequency - max | 4 GHz |
| Mounting feature | Bulkhead - Front Side Nut |
| Cable group | RG-58C, 141A, Belden 9907 |
| Operating temperature | -65°C ~ 165°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Parameter | Value |
|---|---|
| Center contact material | Brass |
| Package | Bulk |
| Includes | 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut |
| Impedance | 50 Ohms |
| Body finish | Nickel |
| Mating cycles | 500 |
| Insertion loss | 0.2dB |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Solder |
| Center contact plating | Gold |

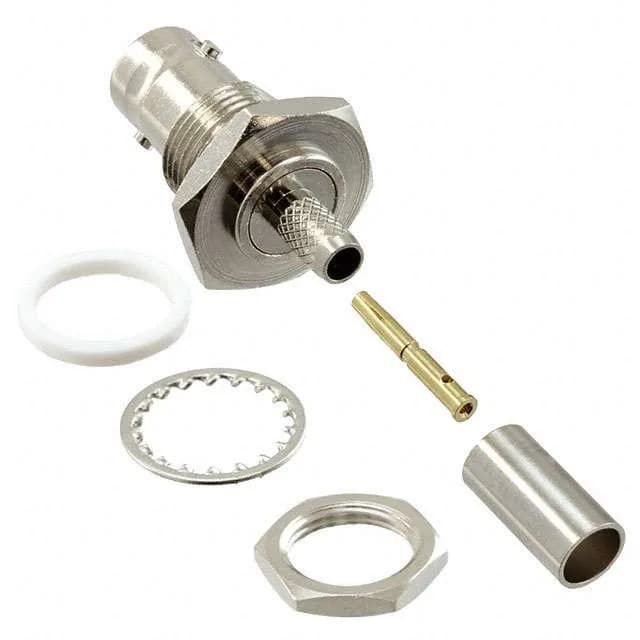

The 1-1337433-0: It is part of the Greenpar series, a broad line of RF coax connectors from TE. The kit includes six pieces: the connector body, a solder contact, a crimp ferrule, a panel gasket, a lockwasher, and a mounting nut — everything needed for a single bulkhead installation.
This jack is trimmed for RG-58C and Belden 9907 cable types.
1-1337433-0 is designed for RG-58C, RG-141A, and Belden 9907 cable types.
