TE Connectivity AMP Connectors 1-1337435-0 — RF / Coaxial Connectors

TE Greenpar 1-1337435-0 BNC Jack, 75 Ohm, 2 GHz, Obsolete

MPN1-1337435-0
Obsolete

TE Connectivity Greenpar BNC jack, female socket, 75 Ohm, 2 GHz, 500 V, panel mount bulkhead, solder contact, crimp shield, nickel body, gold center contact.

$0.8400Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

1-1337435-0 key specifications
ParameterValue
SeriesGreenpar
MountingPanel Mount
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max2 GHz
Mounting featureBulkhead - Front Side Nut
Cable groupRG-59B, 62A, 140, 210
Operating temperature-65°C ~ 165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)

All specifications

1-1337435-0 additional specifications
ParameterValue
Center contact materialPhosphor Bronze
PackageBulk

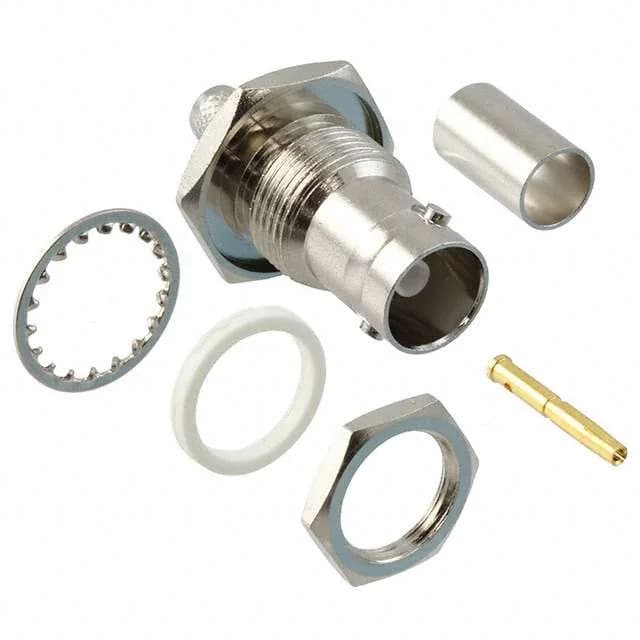

Includes6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut
Impedance75 Ohms
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

75 Ohm BNC Bulkhead Jack — Greenpar Series

It terminates via solder on the center contact and crimp on the shield — a standard field-termination method for RG-59B, 62A, 140, and 210 coaxial cables. The nickel-plated brass body and gold-plated phosphor bronze center contact give it 500 mating cycles of durability, with an insertion loss of 0.2 dB up to 2 GHz.

Sourcing & Lifecycle — Obsolete, Sourced to Order

The 1-1337435-0 is officially listed as Obsolete by TE Connectivity. For a BOM that requires this exact order code, submit an RFQ; the storefront will source from surplus or broker inventory.

Key Specifications & Fit

Rated 500 V and 2 GHz max, the 75 Ohm impedance makes this jack a fit for video, CCTV, and legacy broadcast systems where 75 Ohm BNC is the standard. The bulkhead mount uses a front-side nut, and the kit includes the connector, contact, ferrule, gasket, lockwasher, and nut — six pieces total for a complete installation.

Frequently asked questions

Where can I buy 1-1337435-0?

This obsolete BNC jack is sourced to order against an RFQ through independent distribution — availability and current pricing are confirmed at quote time. Submit your BOM line for a same-day quote.

What is the impedance of 1-1337435-0?

The 1-1337435-0 is a 75 Ohm BNC jack, rated for 2 GHz and 500 V.

What cable groups are compatible with 1-1337435-0?

This connector is designed for RG-59B, 62A, 140, and 210 coaxial cables.
