TE Connectivity AMP Connectors 1-1337443-0 — RF Cable Assemblies

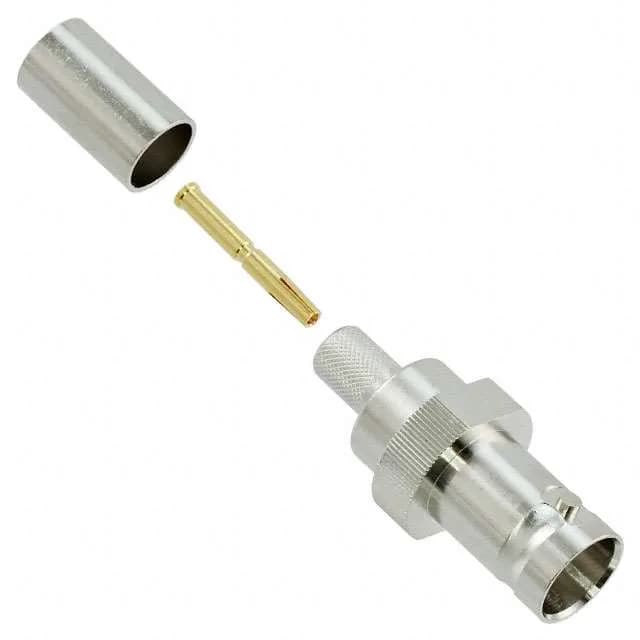

TE Connectivity 1-1337443-0 Greenpar BNC Jack, 75 Ohm, RG-59

MPN1-1337443-0
Active

TE Connectivity Greenpar BNC jack, 75 Ohm, 1 port, bayonet lock, nickel body, crimp shield, solder contact, 500 mating cycles, -65°C to 165°C.

$7.1300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-1337443-0 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1-1337443-0 key specifications
ParameterValue
SeriesGreenpar
MountingFree Hanging (In-Line)
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max2 GHz
Cable groupRG-59B, 62A, 140, 210
Operating temperature-65°C ~ 165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass

All specifications

1-1337443-0 additional specifications
ParameterValue
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance75 Ohms
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

The 1-1337443-0: Mating cycles are rated at 500, which is high for a bayonet-lock connector — the gold-plated centre contact and nickel-plated brass body hold up to repeated field connects without the centre pin fretting.

Cable Fit and Termination — Crimp Shield, Solder Centre

The shield termination is crimp, the centre contact is solder. That is the standard field-termination method for BNC on flexible coax — the braid gets captured under the ferrule, and the centre conductor is soldered into the gold-plated brass pin. The cable groups listed (RG-59B, 62A, 140, 210) cover the common 75 Ohm video coax sizes, but the ferrule and centre contact dimensions are set for those specific cable diameters. If you are terminating a different 75 Ohm cable, verify the outer jacket and centre conductor fit before committing the BOM line.

No last-time-buy or successor notice is on record. TE continues to manufacture this Greenpar-series BNC.

Frequently asked questions

Where can I buy 1-1337443-0 and what is the price?

Submit an RFQ for the quantity you need and the desk will return a firm price and lead time.

Does 1-1337443-0 include the contact and ferrule?

Yes. The kit includes three pieces: the connector body, one centre contact, and one ferrule. You do not need to order the contact or ferrule separately for a single termination.
