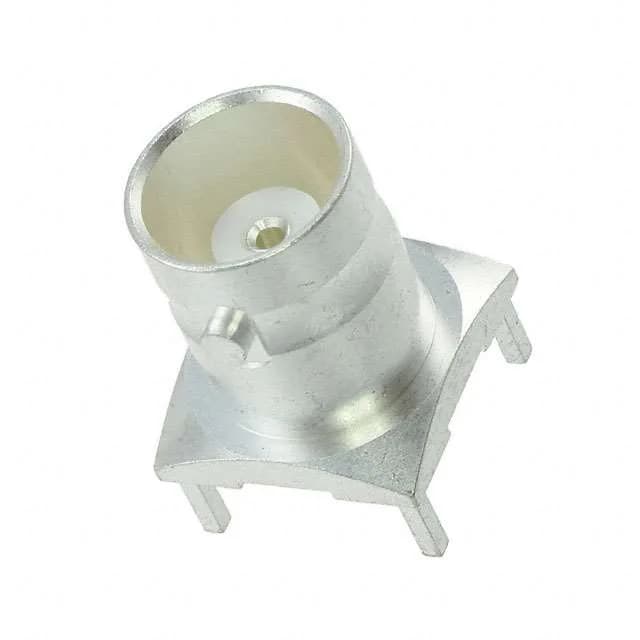

TE Connectivity Greenpar series BNC jack, female socket, 50 Ohms, 4 GHz, 500 V, through-hole solder termination, silver-plated brass body, bayonet lock, 1 port.
| Parameter | Value |
|---|---|
| Series | Greenpar |
| Mounting | Through Hole |
| Connector type | Jack, Female Socket |
| Fastening type | Bayonet Lock |
| Voltage rating | 500 V |
| Frequency - max | 4 GHz |
| Operating temperature | -65°C ~ 165°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Brass |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Impedance | 50 Ohms |
| Body finish | Silver |
| Mating cycles | 500 |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder |
| Center contact plating | Silver |
The 1-1337445-0: The PTFE dielectric holds the impedance line at 50 Ohms across the full rated frequency range.
The 4 GHz upper frequency limit covers the L, S, and lower C bands.
The shield termination is a solder cup or turret (the spec lists shield termination as solder), so you will hand-solder the braid and the centre conductor. The through-hole mounting gives a stronger mechanical anchor than a surface-mount BNC, which matters when the cable is repeatedly flexed at the connector.
The impedance is 50 Ohms, the standard for RF test and communications systems.
