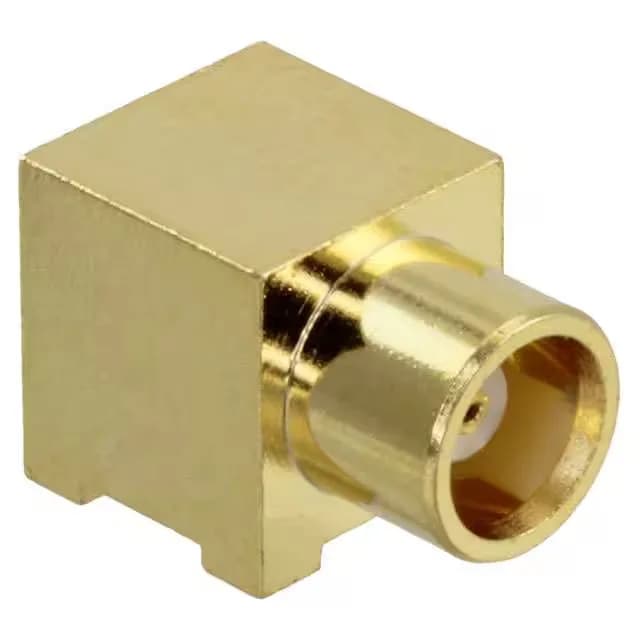

TE Greenpar MCX Jack — 50 Ohm, 6 GHz, SMT Right-Angle
The snap-on fastening type gives a positive lock without the thread torque of an SMA — quicker to mate in production and field service, though the 500-cycle rating means it's designed for moderate reconnect duty, not daily swap-out. Rated at 50 Ohm characteristic impedance with a 6 GHz maximum frequency and just 0.1 dB insertion loss, this jack holds the line for short-board RF links — WiFi modules, GPS antennas, cellular front-ends, and test-point access where you need a clean launch off the PCB.
Mates with any standard MCX plug (male pin) using the snap-on coupling — no tooling required, just push until the latch engages. The single-port, right-angle SMT footprint needs a clean ground-plane cutout under the body to maintain 50 Ohm through the launch — standard MCX layout practice.
