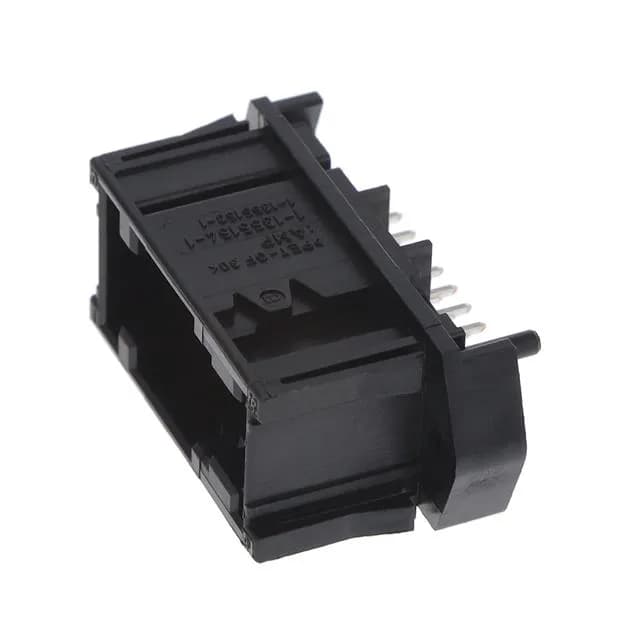

TE Connectivity AMP Connectors Micro Quadlok header, 1-1355154-1, 18 circuits, 2 rows, 0.100" (2.54 mm) pitch, shrouded 4-wall, latch lock, through-hole solder, tin-plated male pins, rated for automotive applications.
| Parameter | Value |
|---|---|
| Series | Micro Quadlok |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock |
| Operating temperature | -40°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.799\" (20.30mm) |
| Insulation material | Polyethylene Terephthalate (PET), Glass Filled |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Features | Board Guide, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 18 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Overall contact length | 0.539\" (13.70mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.264\" (6.70mm) |
The closest peer in the same Micro Quadlok family is 1379030-3, a 12-position, 2-row right-angle header with a friction lock instead of a latch lock. 1-1355154-1 offers 18 positions (vs 12) and a vertical orientation, which changes the board footprint and cable exit direction. Both use 0.100" pitch and tin plating.
Yes, it is RoHS3 Compliant.
