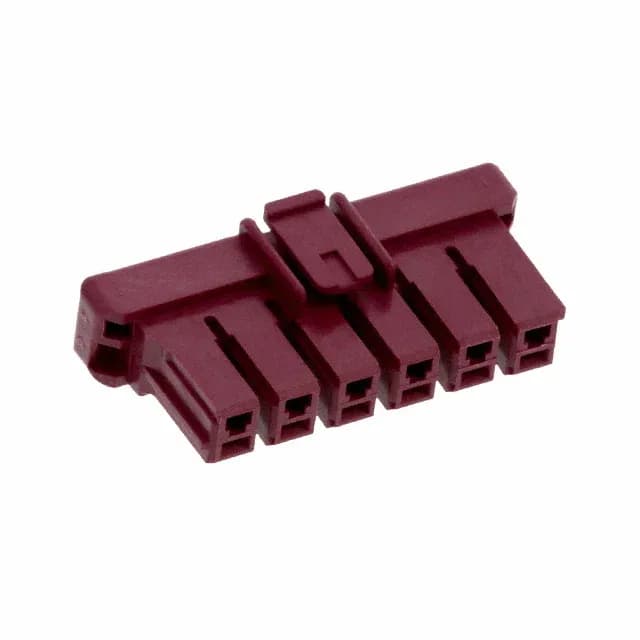

TE Power Key series, plug housing, 6 positions, 5.00mm pitch, 1 row, red PA66, latch lock, free hanging, crimp termination, contacts not included.
| Parameter | Value |
|---|---|
| Series | Power Key |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Fastening type | Latch Lock |
| Operating temperature | -30°C ~ 105°C |
| Color | Red |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 6 |
The housing is red PA66 (glass-filled nylon 6/6), latch-lock fastening, and free-hanging (in-line) mounting — it sits in the middle of a cable run, not on a panel or PCB.
The termination is crimp, so the build requires the matching TE Power Key crimp terminal and a hand or auto-crimp tool. The 6 circuits in a single row mean one pass through the tool for each wire.
No, the 1-1376391-2 is a housing only — contacts are not included. You must order the matching Power Key female socket crimp terminals separately.
The 1-1376391-2 uses a 5.00 mm pitch between circuits.
