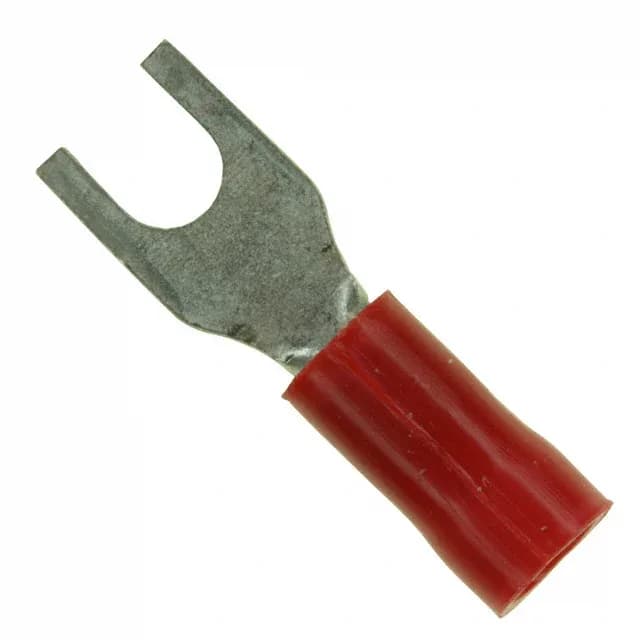

TE Connectivity AMP Connectors Plasti-Grip spade terminal, order code 1-1377173-4, 16-22 AWG, #4 stud, red, insulated, tin-plated copper, serrated crimp, free hanging, bulk.
| Parameter | Value |
|---|---|
| Series | Plasti-Grip |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 16-22 AWG |
| Color | Red |
| Contact material | Copper |
| Width - outer edges | 0.218\" (5.54mm) |
| Package | Bulk |
| Features | Serrated Termination |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 4 Stud |
| Contact finish | Tin |
| Length - overall | 0.784\" (19.91mm) |
| Insulation diameter | 0.145\" ~ 0.160\" (3.68mm ~ 4.06mm) |
| Length - termination | 0.406\" (10.31mm) |
| Tongue inside opening | 0.119\" (3.02mm) |
| Length - ring center to termination | 0.268\" (6.81mm) |
The 1-1377173-4 is the red-coded member of TE's Plasti-Grip spade terminal line, accepting 16-22 AWG wire and fitting a #4 stud. The tin-plated copper contact is crimp-terminated and free-hanging (in-line), with a serrated termination that bites through oxide for a consistent connection.
The insulation is red, which corresponds to the 16-22 AWG wire range per the Plasti-Grip color code.
