TE Connectivity AMP Fastin-Faston quick disconnect receptacle, order code 1-1393310-8, female, 0.250" (6.35mm) tab width, 18-20 AWG, tin-plated copper alloy, non-insulated, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Fastin-Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 18-20 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Copper Alloy |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Insulation diameter | 0.080\" ~ 0.122\" (2.03mm ~ 3.10mm) |
The 1-1393310-8 is a female quick disconnect receptacle from TE's Fastin-Faston series, accepting 18-20 AWG wire on a 0.250" (6.35mm) tab. Tin-plated copper alloy contact with crimp termination; rated for free-hanging in-line mounting without insulation support.

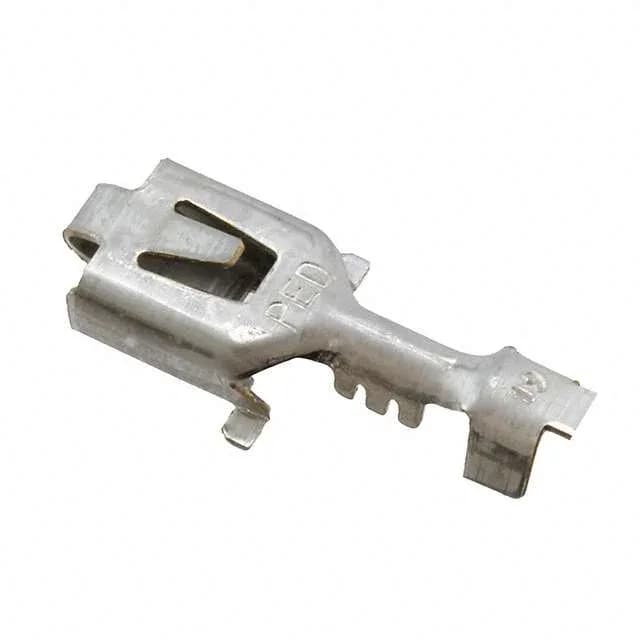

Female receptacle.
