6.00mm Pitch Sealed Receptacle Housing for Harsh Environments

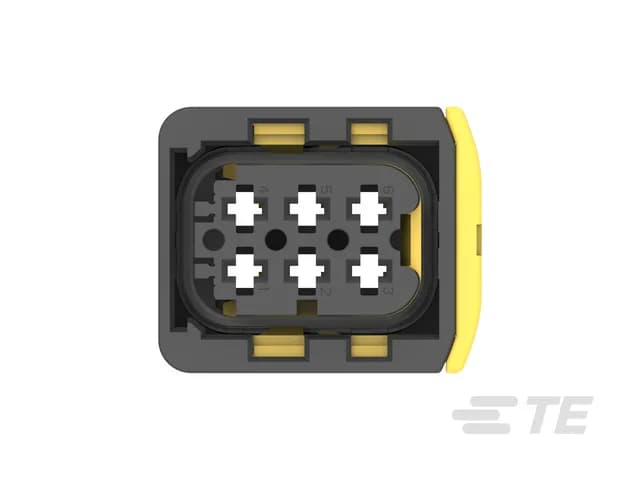

The TE Connectivity 1-1418437-1 is a 6-position, 2-row receptacle housing from the MCP 2.8K (Heavy Duty Sealed Connector Series). It uses a 6.00mm pitch and a 6.00mm row spacing, giving each contact enough room for the 2.8mm terminal family's current capacity — this is the housing that goes on the wire harness side of a sealed interconnect, typically in engine compartments, transmission interfaces, or outdoor industrial equipment where moisture and temperature cycles are a given.
Sealed Construction and Material Choice
The housing is sealed and moulded from black, glass-filled PBT, which handles the -40°C to 140°C operating range — that temperature span covers underhood automotive and industrial cabinet duty without the material getting brittle or softening. The slide-on fastening type means the mating plug pushes on and locks with an audible click; no tools needed for field connection or disconnection.
