TE Connectivity AMP Connectors 1-1418448-2

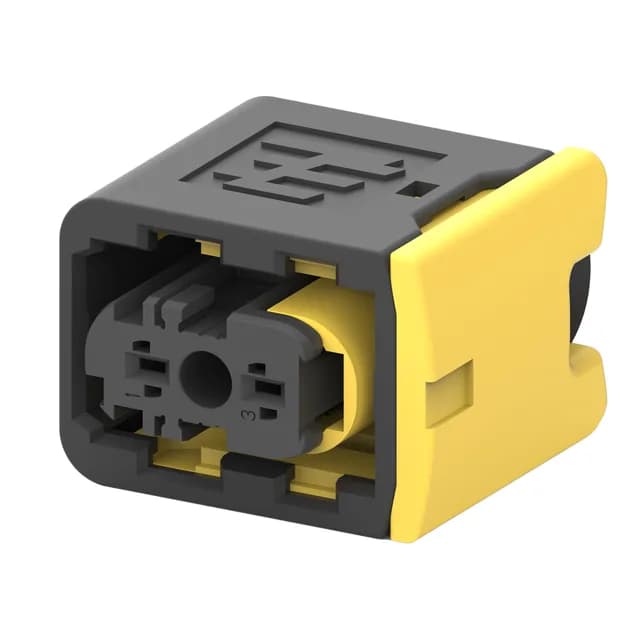

TE 1-1418448-2 Heavy Duty Sealed Connector

MPN 1-1418448-2
Active

TE Connectivity Heavy Duty Sealed Connector Series, MCP 1.5K, receptacle housing, 2 positions, 1 row, 8.00mm pitch, free hanging, crimp termination, sealed, black PBT housing, bulk.

$1.6200 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesHeavy Duty Sealed Connector Series, MCP 1.5K
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-1418448-2 specifications
ParameterValue
SeriesHeavy Duty Sealed Connector Series, MCP 1.5K
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeSlide-On
Operating temperature-40°C ~ 140°C
ColorBlack
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
NoteContacts Not Included
Pitch0.315\" (8.00mm)
PackageBulk
FeaturesSealed
Rows1
Contact terminationCrimp
Positions2

Product details

8.00 mm Pitch Sealed Receptacle Housing for Harsh Environments

The 8.00 mm pitch gives generous spacing between circuits, suited for higher-voltage or power applications where creepage distance matters. The housing is sealed and rated for -40°C to 140°C, pointing to underhood automotive, industrial washdown, or outdoor equipment use where moisture and temperature swings are routine.

The slide-on fastening means the mated plug housing pushes on without tools, but the connection relies on the terminal retention in the cavity, not a locking ramp. For applications with vibration, verify the terminal pull-force and consider whether a locking ramp style (like the 1-1703532-1 plug) better suits the duty cycle.

Sealed Housing, Wide Thermal Range

That temperature span covers engine bay heat soak and cold-start conditions in automotive, as well as industrial cabinet cycling. The single-row, 2-position layout keeps the assembly compact for inline harness splices or sensor connections where only two circuits are needed.

MPN
1-1418448-2
