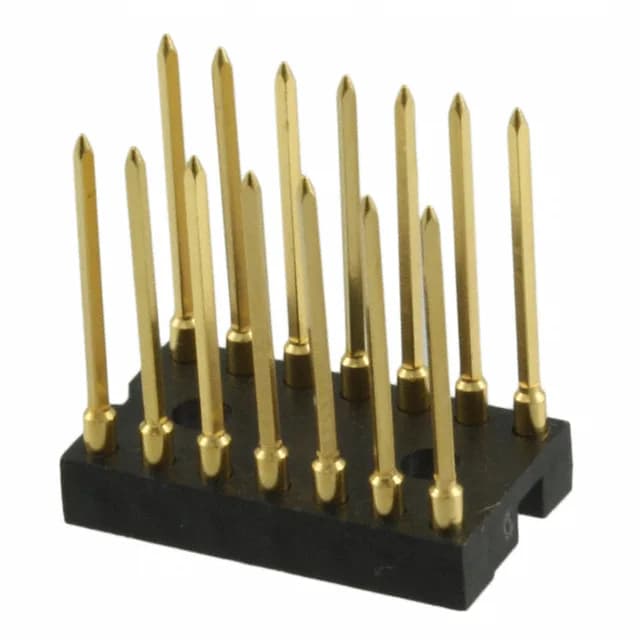

TE Connectivity AMP Series 500 DIP header, order code 1-1437531-8, 14 positions, dual row, 0.100" (2.54mm) pitch, gold-plated mating contacts, gold-plated post, through-hole, wire wrap termination, closed frame, UL94 V-0.
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | 500 |
| Mounting | Through Hole |
| Operating temperature | -55°C ~ 125°C |
| Contact material - post | Copper Alloy |
| Contact material - mating | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Closed Frame |
| Termination | Wire Wrap |
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Number of positions or pins | 14 (2 x 7) |
The 1-1437531-8 is listed as Obsolete by TE Connectivity AMP Connectors. Available through independent surplus channels; quantities and date codes are confirmed at RFQ. No stock-holding claim is made.
The closed-frame housing keeps the contacts aligned during wrap operations and protects the interface from debris.
Pricing and stock are confirmed per RFQ. Submit a request with quantity and target date code; availability is checked against independent surplus channels.
No pin-compatible alternative or official successor is documented by the manufacturer. A board spin may be required for a functional replacement.
