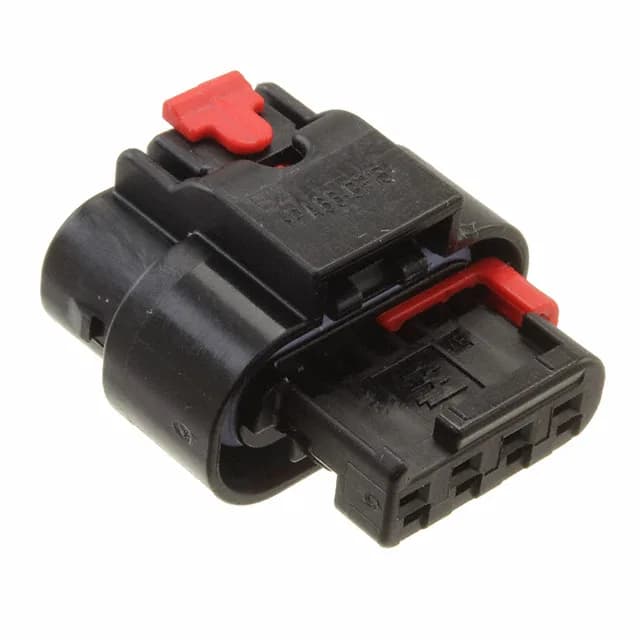

TE Connectivity MCON 1.2 series, 1-1456426-5, 4-position single-row receptacle housing, 4.00mm pitch, free-hanging, crimp termination, CPA latch, -40°C to 150°C.
| Parameter | Value |
|---|---|
| Series | MCON |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Operating temperature | -40°C ~ 150°C |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.157\" (4.00mm) |
| Package | Bulk |
| Features | Connector Position Assurance (CPA) |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 4 |
The mating half is a TE MCON 1.2 header or plug with the corresponding 4.00 mm pitch and latch holder retention; the CPA feature on this receptacle engages with the mating connector's latch to prevent accidental disconnect. Stock both halves or neither — an orphan receptacle with no mated plug is dead stock on the shelf.
Active — TE Connectivity lists this as a current-production part with no end-of-life notice. RoHS3 compliant.
This part is sourced to order against your BOM quantity.
