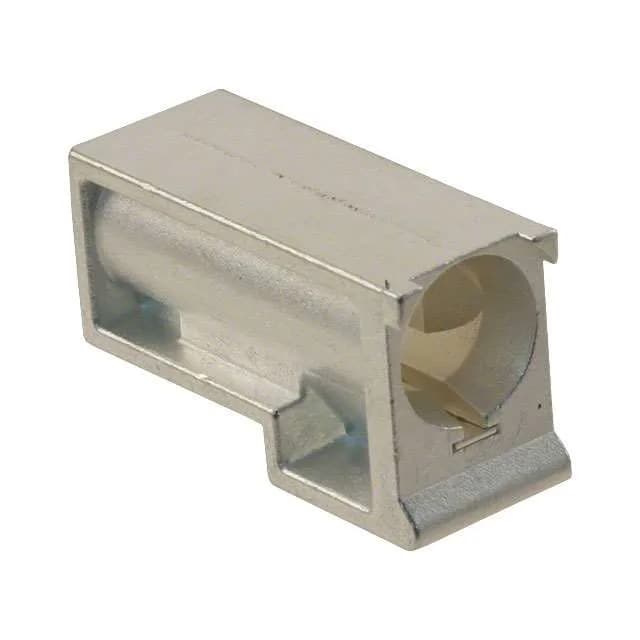

TE Connectivity MULTIGIG RT series guide module, 1-1469492-7, 270-degree key orientation, VITA 46 compatible, tray package, ROHS3 compliant.
| Parameter | Value |
|---|---|
| Series | MULTIGIG RT |
| Accessory type | Guide Module |
| Package | Tray |
| For use with (Related products) | MULTIGIG RT Series |
The TE Connectivity 1-1469492-7 is a guide module accessory for the MULTIGIG RT series, not a connector itself. It provides the mechanical keying and alignment that prevents a daughtercard from being inserted into the wrong slot of a VITA 46 backplane. The 270-degree designation refers to the orientation of the keying feature — it mates with the corresponding key slot on the backplane guide pin to enforce correct card position.
Submit an RFQ for a firm quote on your BOM quantity.
Yes, it is compatible with any MULTIGIG RT backplane that has a 270-degree keyed guide pin at the target slot. The guide module does not interfere with the signal connectors — it provides mechanical alignment and keying only.
