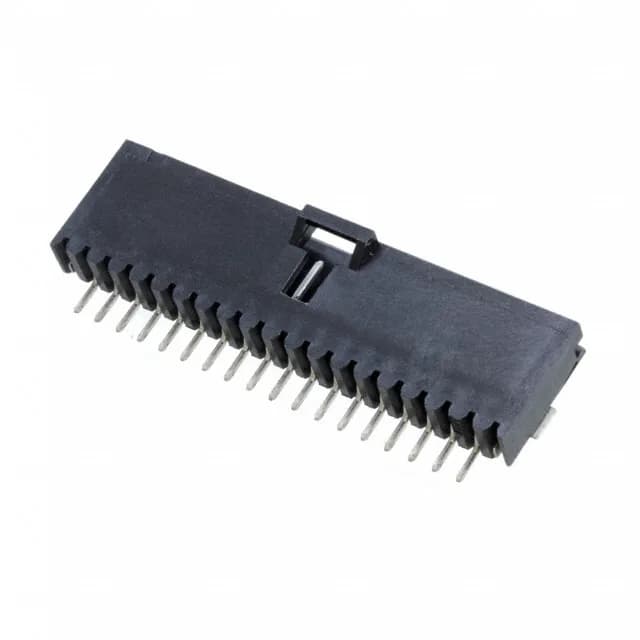

TE Connectivity AMP Connectors AMPMODU MTE header, order code 1-147324-7, 18 positions, single row, 0.100" (2.54mm) pitch, 3 A, tin-lead mating contacts, surface-mount right-angle, solder termination, shrouded 4-wall.
1-147324-7 TE AMPMODU MTE Header, 18 Pos, 2.54mm
MPN1-147324-7
Active
TE Connectivity AMP Connectors AMPMODU MTE header, order code 1-147324-7, 18 positions, single row, 0.100" (2.54mm) pitch, 3 A, tin-lead mating contacts, surface-mount right-angle, solder termination, shrouded 4-wall.
$3.9130Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.200\" (5.08mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock, Keying Slot, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 18 |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Tin-Lead |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Product details
Frequently asked questions
What is the closest pin-compatible alternative to 1-147324-7 in this Pin Headers, Sockets & Housings family?
No pin-compatible alternative is listed on record for the 1-147324-7 within the AMPMODU MTE series. The 18-position count and single-row 0.100" pitch are specific to this order code.
What compliance documentation does TE Connectivity AMP Connectors provide for 1-147324-7?
RoHS and REACH compliance documentation is available from TE Connectivity for the AMPMODU MTE series.
