TE Connectivity AMP Connectors 1-1473776-7 — Wire-to-Board Connectors

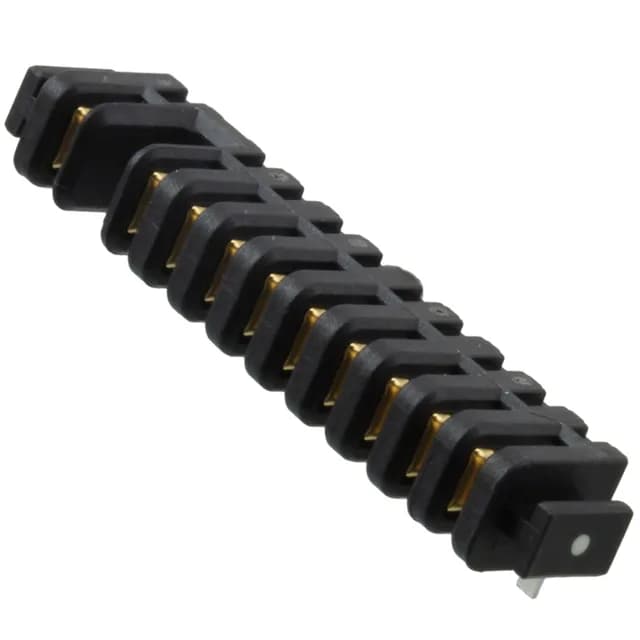

TE 1-1473776-7 Battery Connector, 10 Pos, 6 A

MPN1-1473776-7
Active

TE Connectivity, 1-1473776-7, Battery Receptacle, 10 Positions, 1 Row, 0.098" (2.50mm) Pitch, Through Hole, Solder, Gold, 6 A, 30 V.

$2.7300Ref. price · indicative, final on quote
RoHSRoHS Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-1473776-7 specifications
ParameterValue
MountingThrough Hole
Connector typeReceptacle, Female Blade Sockets
Fastening typePush-Pull
Voltage rating30 V
Current rating6 A
Operating temperature-20°C ~ 80°C
ColorBlack
Contact materialCopper Alloy
Material - insulationPolyamide (PA6T), Nylon 6T
Pitch0.098\" (2.50mm)
PackageTray
FeaturesSolder Retention
TerminationSolder
Contact finishGold
Rows1
Positions10
Contact finish thickness11.8µin (0.30µm)

Product details

It uses female blade sockets rated 6 A per circuit at 30 V — the current density tells you this is a power interface, not a signal line. The 0.098" (2.50 mm) pitch keeps the board footprint compact while still providing enough creepage for the 30 V working voltage. Gold plating at 11.8 µin (0.30 µm) on the contacts gives a solid middle-ground cycle life for a battery connector that sees periodic pack swaps but not daily reconnection.

Derate it above 80°C if the pack runs hot, but the -20°C to 80°C operating range already limits this to indoor or protected enclosures.

The 1-1473776-6 is the 6-position sibling in the same battery receptacle series. Both share the 0.098" (2.50 mm) pitch, 6 A per circuit rating, gold plating, through-hole solder termination, and the same -20°C to 80°C operating range. The difference is the position count — 10 circuits vs 6 circuits — which decides the BOM line match. If your battery pack needs 6 cell connections, the 1-1473776-6 saves board space; if you need 10, the 1-1473776-7 is the correct fit. No other functional difference between the two.

Frequently asked questions

Is 1-1473776-7 RoHS compliant?

Yes, the 1-1473776-7 is listed as RoHS Compliant.

What is the difference between 1-1473776-7 and 1-1473776-6?

The 1-1473776-7 has 10 positions, while the 1-1473776-6 has 6 positions. Both share the same 2.50 mm pitch, 6 A rating, gold plating, and through-hole termination.
