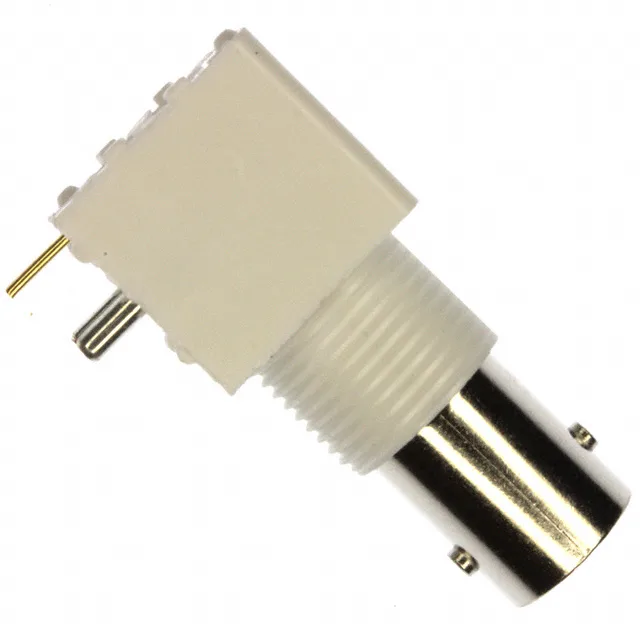

1-1478032-0 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Greenpar 1-1478032-0 BNC Jack, 75 Ohm, 2 GHz, Obsolete

MPN1-1478032-0
Obsolete

TE Connectivity Greenpar ZDC series BNC jack, 75 Ohm, 1 port, female socket, bayonet lock, panel mount bulkhead with right-angle through-hole solder termination, nickel body, gold centre contact, 500 V, 2 GHz max, 500 mating cycles.

$11.8500Ref. price · indicative, final on quote
1-1478032-0 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

1-1478032-0 Technical Specifications
ParameterValue
SeriesZDC, Greenpar
Mounting typePanel Mount, Through Hole, Right Angle
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max2 GHz
Mounting featureBulkhead - Front Side Nut
Operating temperature-55°C ~ 85°C
Body materialZinc Die Cast
Housing colorSilver, White
Dielectric materialPolyethylene (PE)
Center contact materialBrass
PackageBulk
FeaturesBoard Guide, Isolated
Impedance75 Ohms
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

The 1-1478032-0: Rated to 2 GHz maximum frequency and 500 V, this jack carries the 75 Ohm characteristic impedance that distinguishes it from the more common 50 Ohm BNC used in RF and telecom; the 75 Ohm variant is the correct choice for composite video, SDI, and analogue broadcast distribution where impedance mismatch causes return loss and ghosting. The mounting arrangement is a bulkhead front-side nut with a right-angle through-hole PCB tail — the signal enters perpendicular to the board, saving height in a shallow enclosure.

Lifecycle Status — Obsolete, Sourced to Order

The 1-1478032-0 carries an official Obsolete lifecycle status. TE Connectivity no longer manufactures this part as a standard catalogue line.
