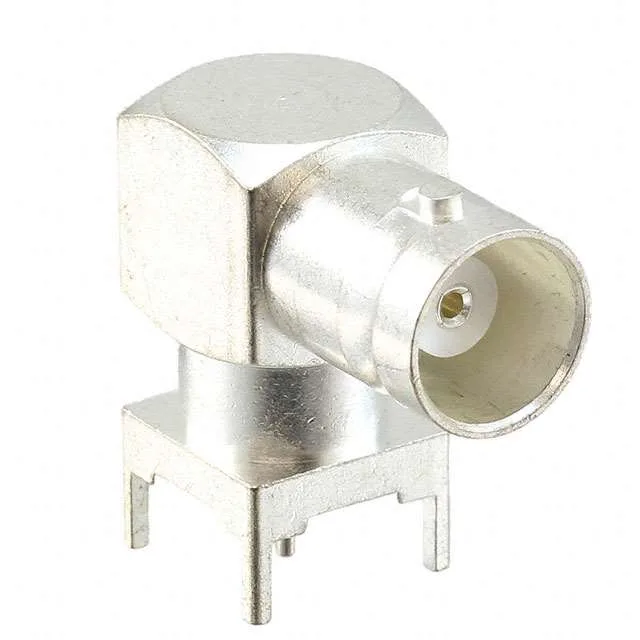

TE Connectivity Greenpar BNC jack, female socket, 1-1478035-0, 50 Ohm impedance, 4 GHz max frequency, right-angle through-hole mount, bayonet lock, silver-plated brass body and center contact, PTFE dielectric, 500 mating cycles.
| Parameter | Value |
|---|---|
| Series | Greenpar |
| Mounting | Through Hole, Right Angle |
| Connector type | Jack, Female Socket |
| Fastening type | Bayonet Lock |
| Voltage rating | 500 V |
| Frequency - max | 4 GHz |
| Operating temperature | -65°C ~ 165°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Brass |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Impedance | 50 Ohms |
| Body finish | Silver |
| Mating cycles | 500 |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder |
| Center contact plating | Silver |
The 1-1478035-0 is listed as Obsolete.
The 50-Ohm impedance and 4 GHz frequency ceiling suit this jack for RF signal paths in instrumentation, telecom, and broadcast gear. The center contact also solders to the board; the PTFE dielectric holds the impedance steady through the launch.
The 1-1478035-0 is a 50-Ohm BNC jack, rated to 4 GHz maximum frequency.
