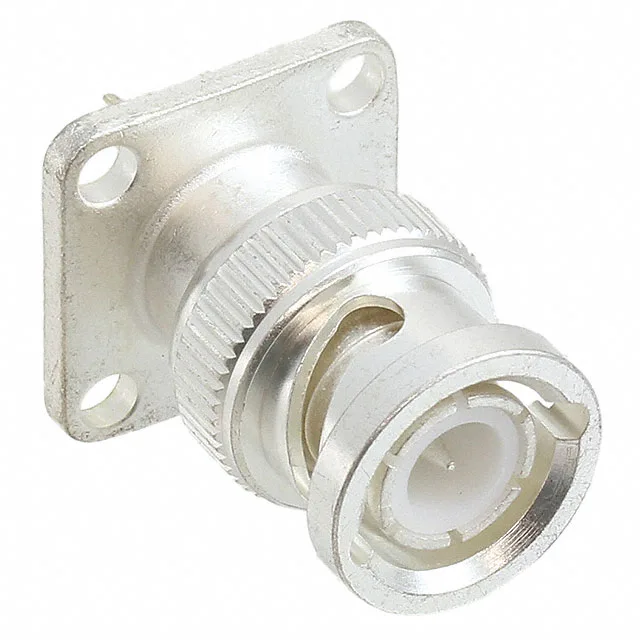

Rated to 2 GHz and 500 V, it handles the full bandwidth of standard-definition and high-definition analog video signals, as well as precision instrumentation links where the 75 Ohm characteristic impedance maintains signal integrity over coaxial cable. The bayonet lock provides a quarter-turn mate that stays engaged under vibration, while the panel mount flange lets you fix the connector to an enclosure wall or bulkhead. Solder cup termination on both the center pin and shield gives a reliable, field-serviceable connection to RG-59, RG-6, or similar 75 Ohm coax.
500 Mating Cycles and Wide Thermal Range
Rated for 500 mating cycles.
Materials and Construction for Signal Integrity
Both the body and center contact are machined from brass with a silver finish. Silver plating on the center contact keeps surface resistance low at RF frequencies, where skin effect concentrates current near the surface. The PTFE dielectric offers a low and stable dielectric constant, minimizing signal loss and phase shift up to the 2 GHz ceiling.
