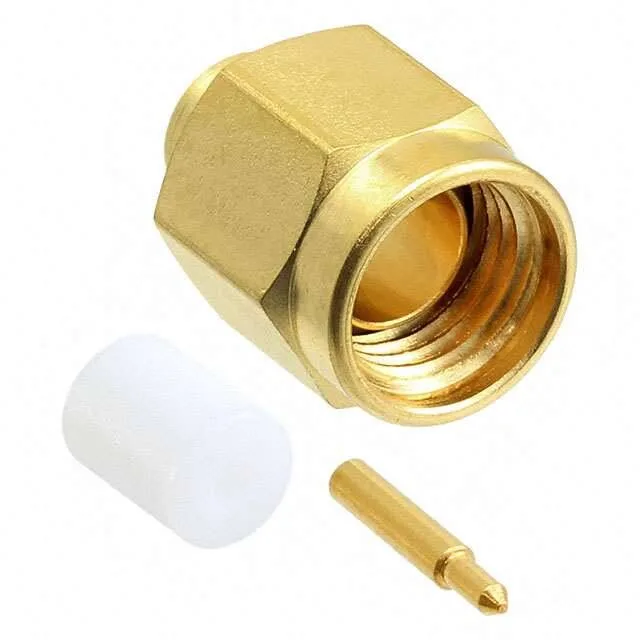

1-1478903-0 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Greenpar 1-1478903-0 SMA Plug, 18 GHz, RG-402

MPN1-1478903-0
Active

TE Connectivity Greenpar SMA plug, male pin, 50 Ohm, 18 GHz, 500 mating cycles, gold body, solder termination, for RG-402 semi-rigid cable.

$4.0771Ref. price · indicative, final on quote
1-1478903-0 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

1-1478903-0 Technical Specifications
ParameterValue
SeriesGreenpar
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeThreaded
Voltage rating500 V
Frequency - max18 GHz
Cable groupRG-402 (.141\" Semi Rigid)
Operating temperature-65°C~165°C
Body materialStainless Steel
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Insulator
Impedance50Ohm
Body finishGold
Mating cycles500
Insertion loss0.06dB
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

Cable Fit and Termination

The 1-1478903-0: This plug is built specifically for RG-402 (.141" semi-rigid) cable. The threaded fastening type gives a secure, vibration-resistant mate with any standard SMA jack.

Mating Cycles and Body Finish

The gold body finish and gold centre contact plating resist corrosion and maintain low contact resistance over the life of the connector. The free-hanging (in-line) mounting style means it terminates a cable end and mates to a panel jack or bulkhead receptacle.

Frequently asked questions

What cable does the 1-1478903-0 connector fit?

This SMA plug is designed for RG-402 (.141" semi-rigid) cable. Both the centre pin and shield are solder-terminated to the cable.

What is the insertion loss of the 1-1478903-0?

The specified insertion loss is 0.06 dB at the rated frequency range.

Where to buy 1-1478903-0 with stock?

This part is sourced to order against your BOM quantity.
